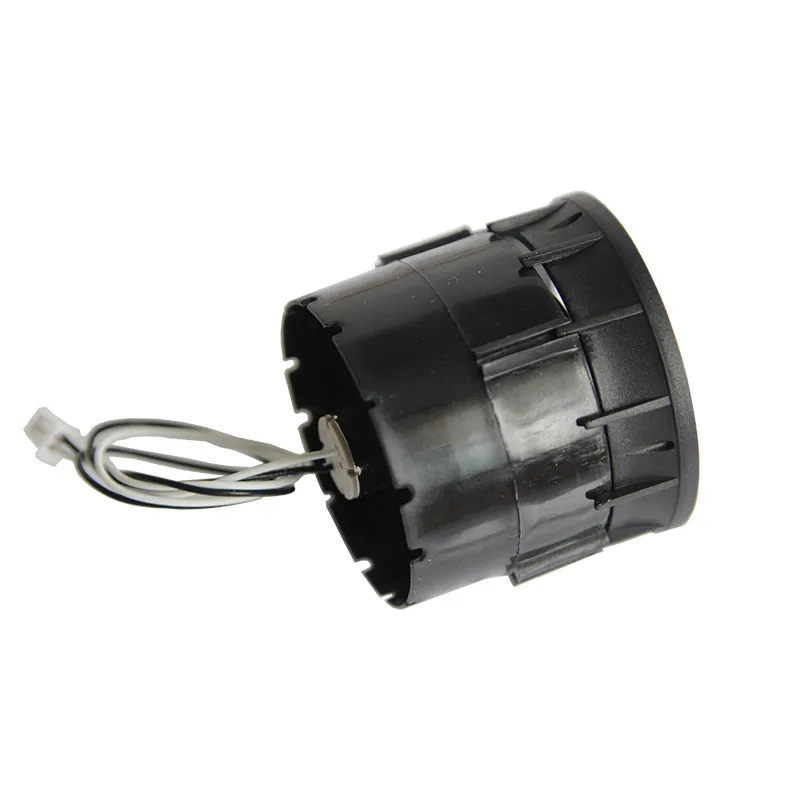

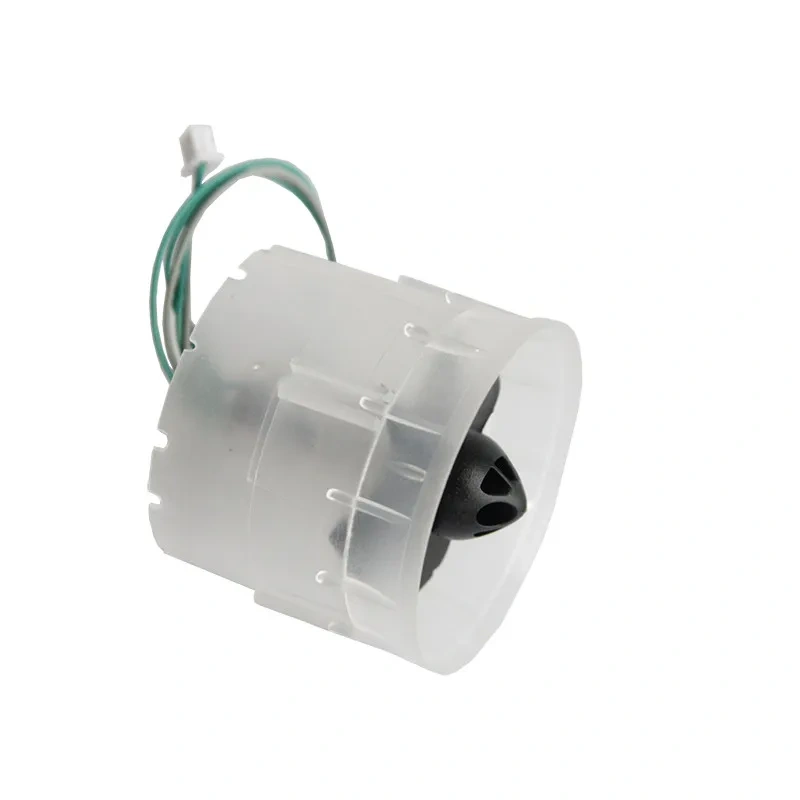

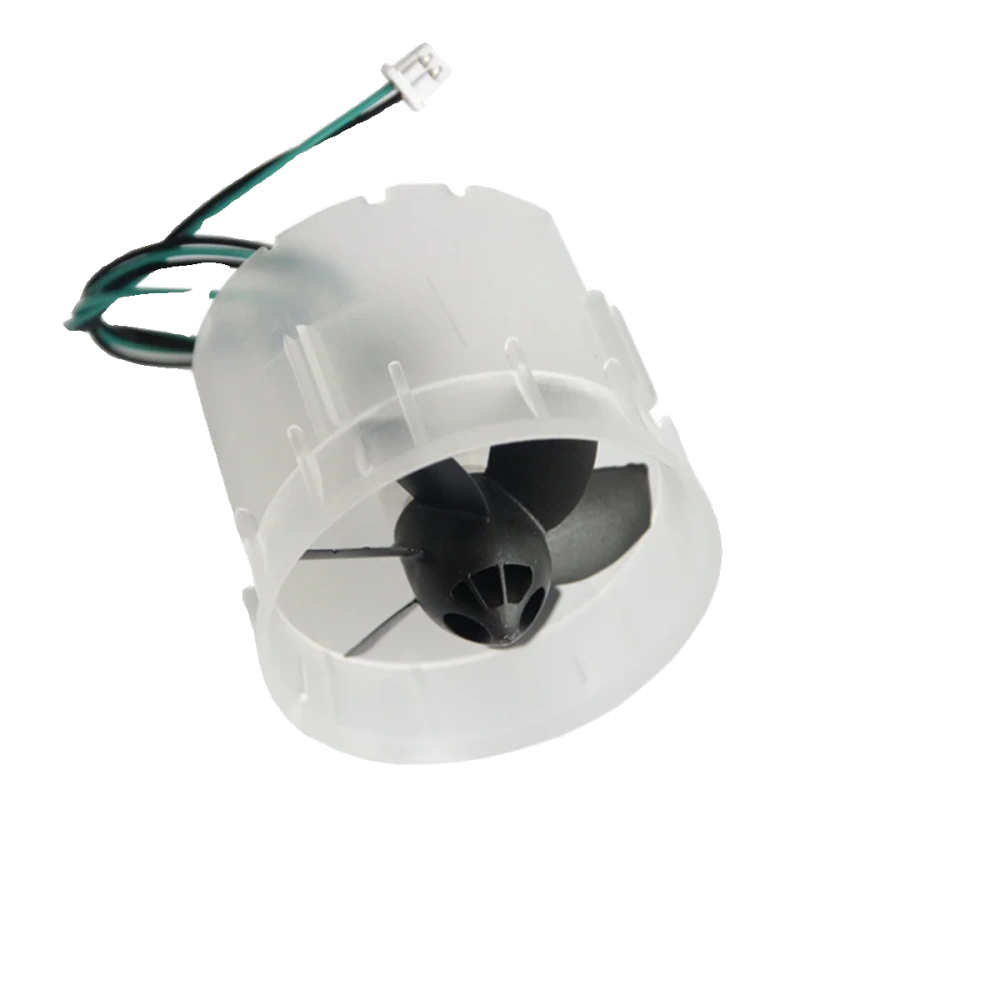

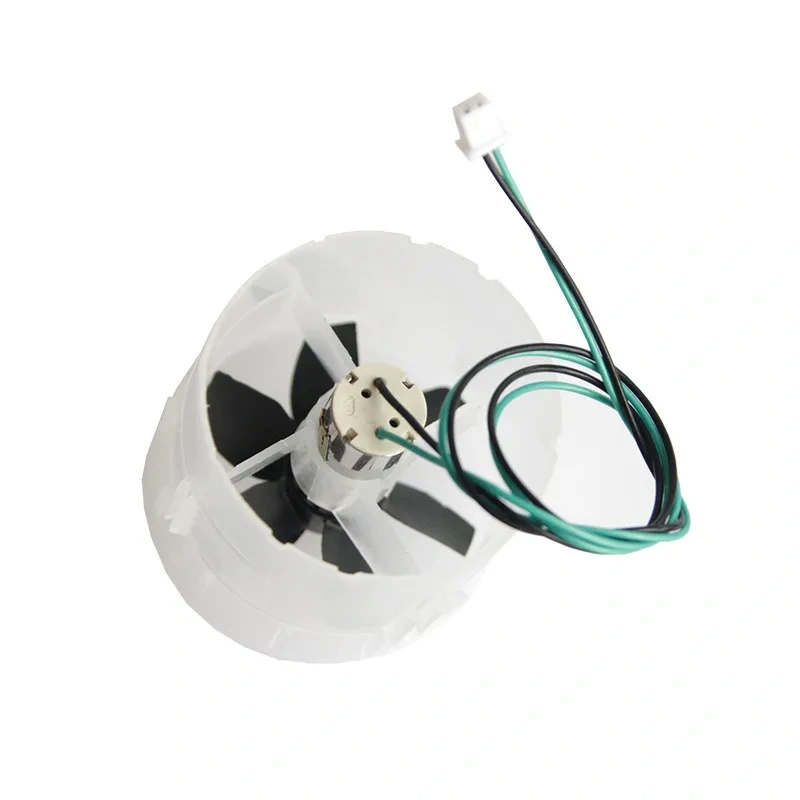

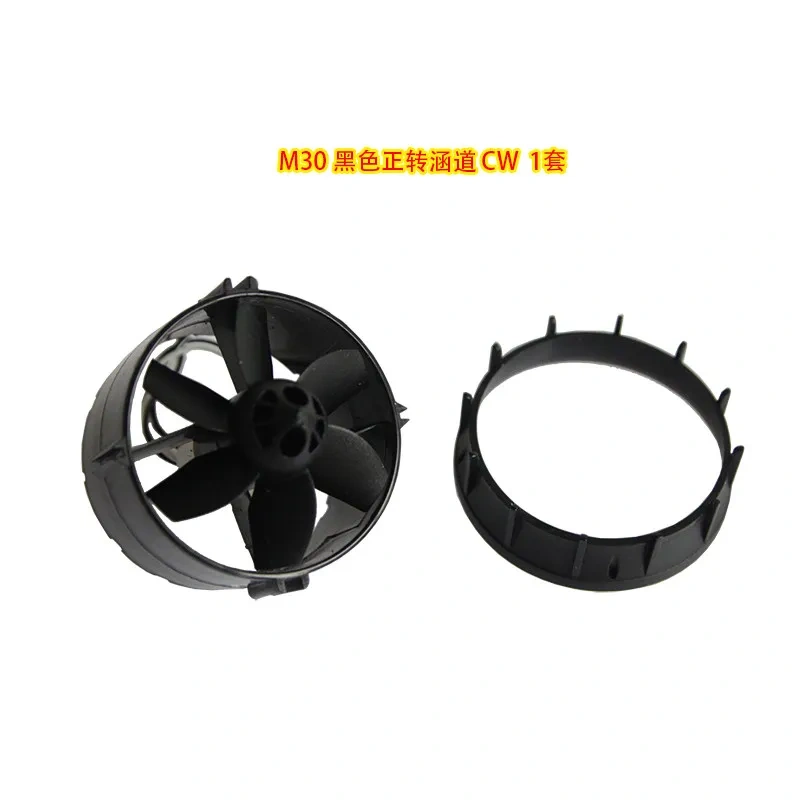

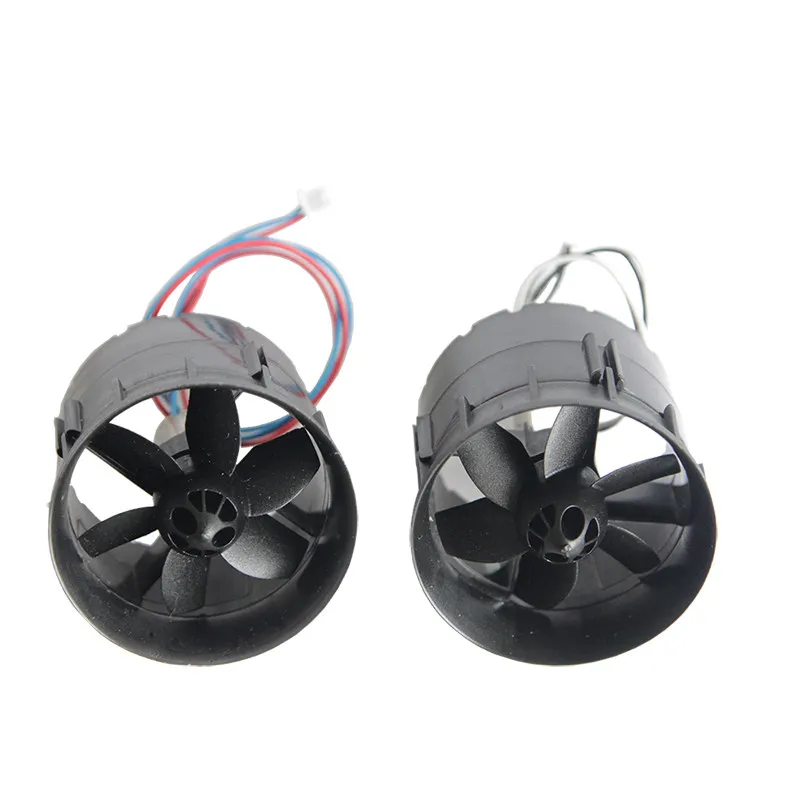

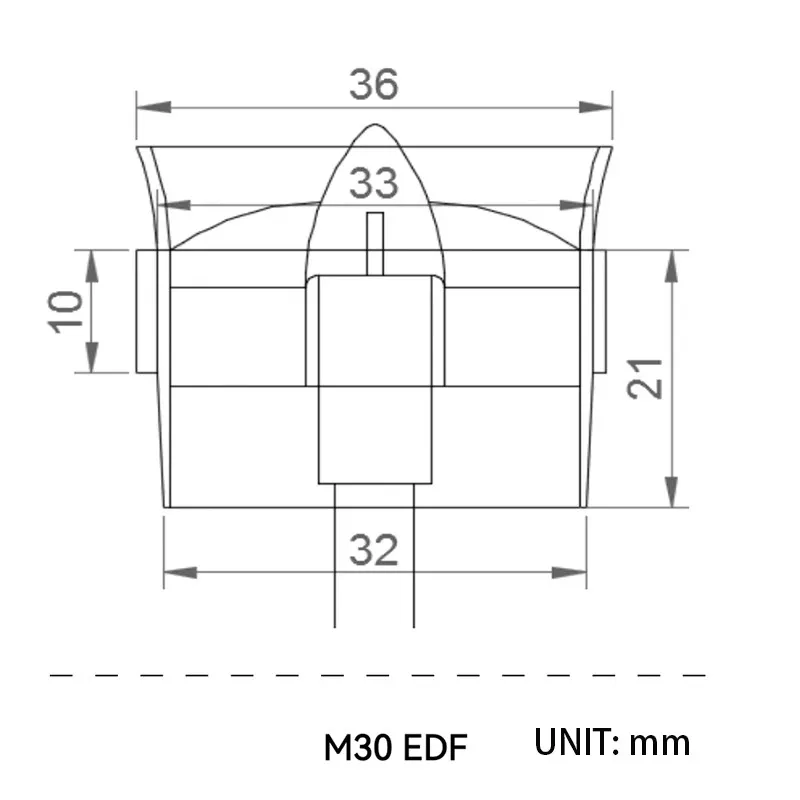

M30 30mm EDF Unit Coreless Motor Ducted Fan 3.7V 50g Thrust for RC Micro Jet Plane Aircraft Replacement Parts
Product description:
1, Blade size: 30 mm

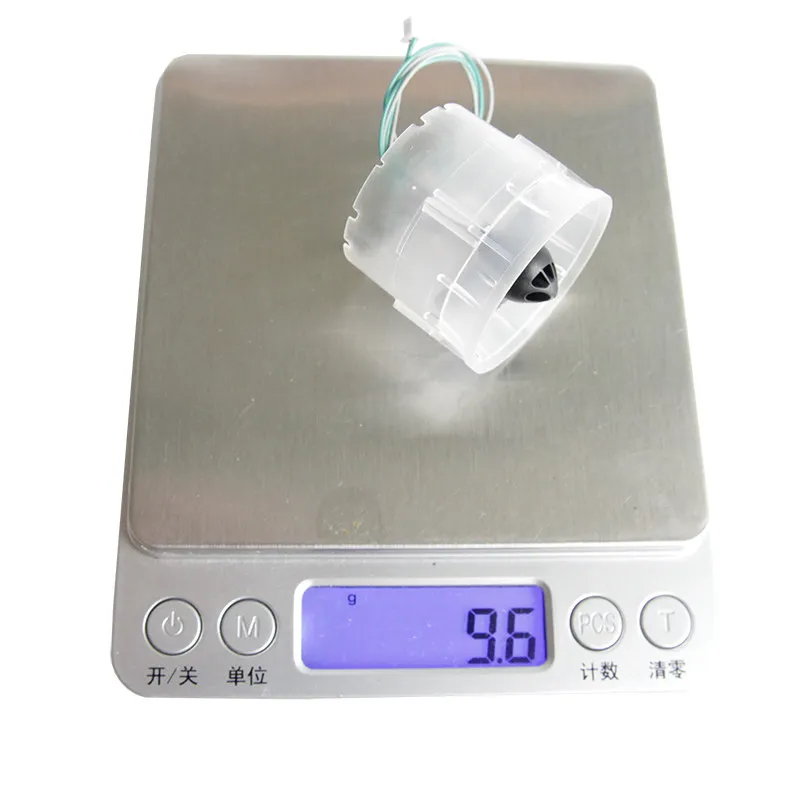

2, weight: 9.7 g
3, thrust: above 50 g (operating voltage: 3V~5V)
4, maximum continuous operating current: 4.7A (stating a brushed electric adjustment of 5A or 6A is sufficient). 5. 25 mm pitch plug
Features of the product:
Superior ducted support shape, greatly reducing vortices; The duct barrel made of rigid material effectively avoided deformation and blast; Superior motor technology, slightly lower current, slightly increased thrust, good sound, significantly extended life; Fine tooling to avoid propeller injection.

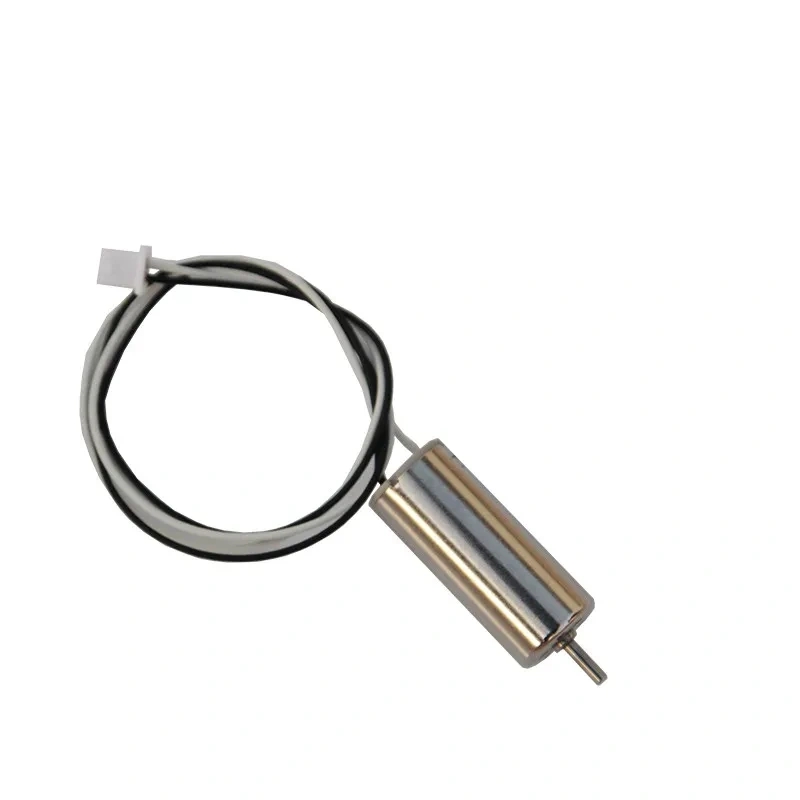

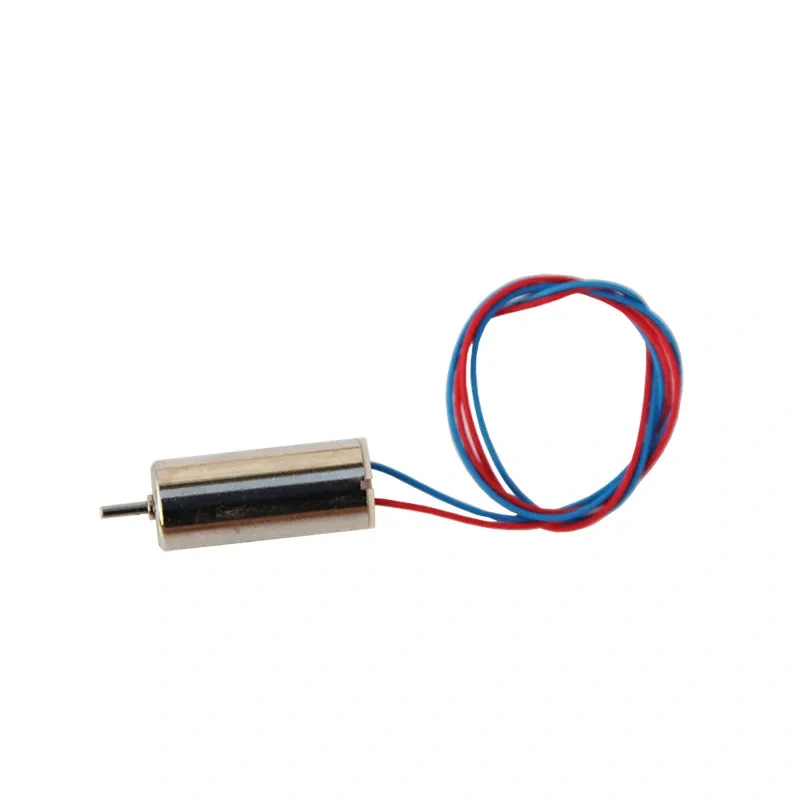

Motor parameters:
Model: 8520 Hollow Cup Motor
Motor diameter: 8.5MM
Motor length: 20 mm
Output shaft: 1.0MM
Length of output shaft: 5.2MM
Weight: 5.5 g

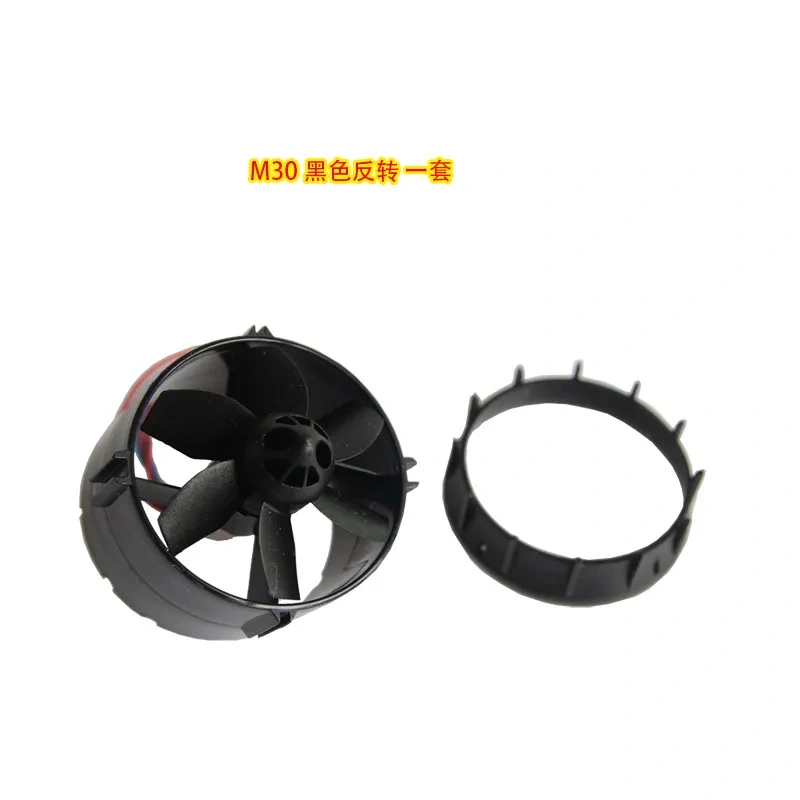

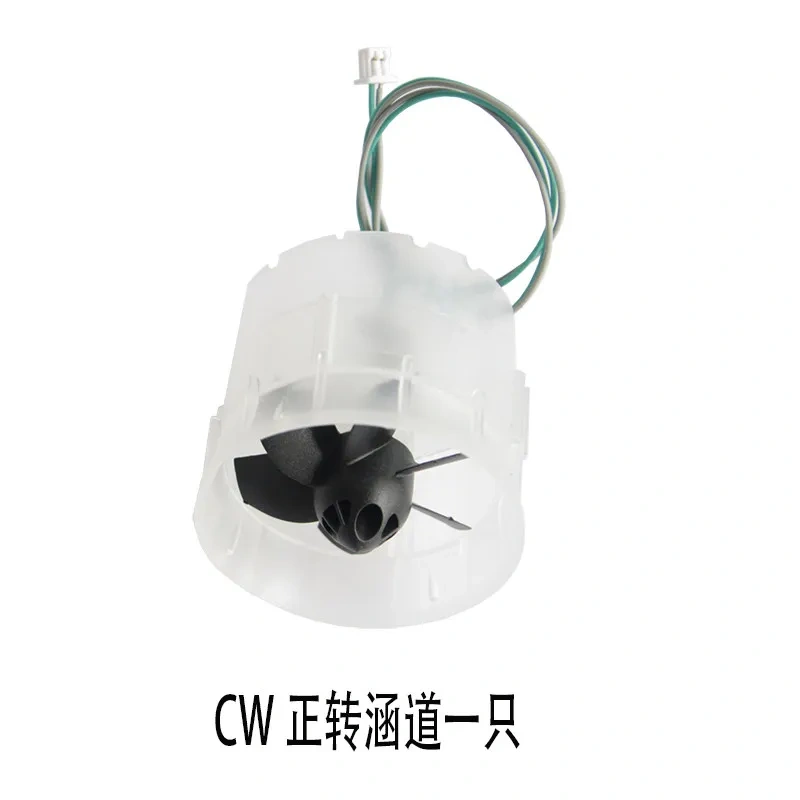

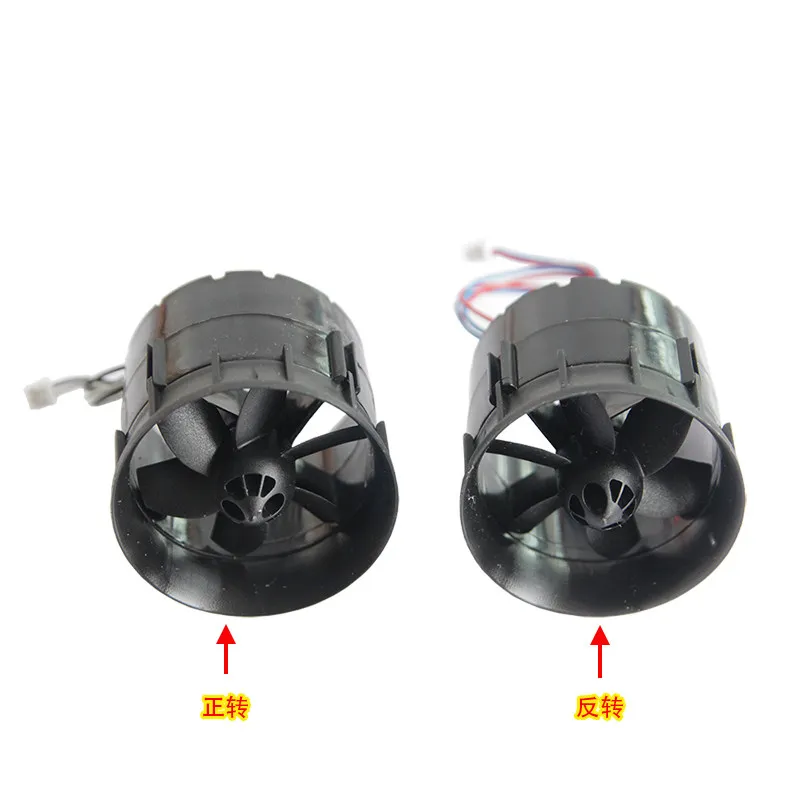

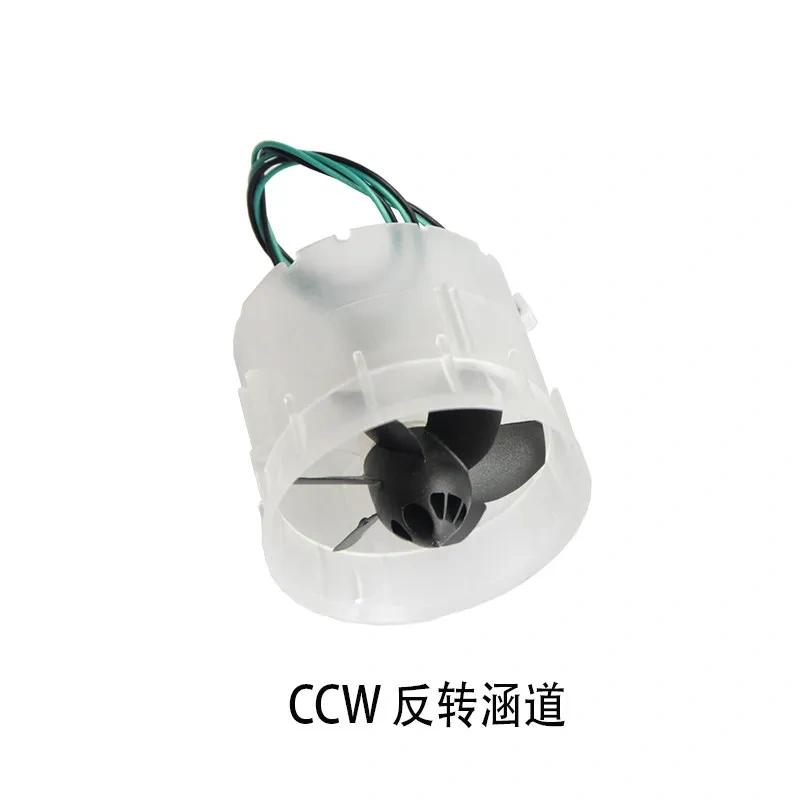

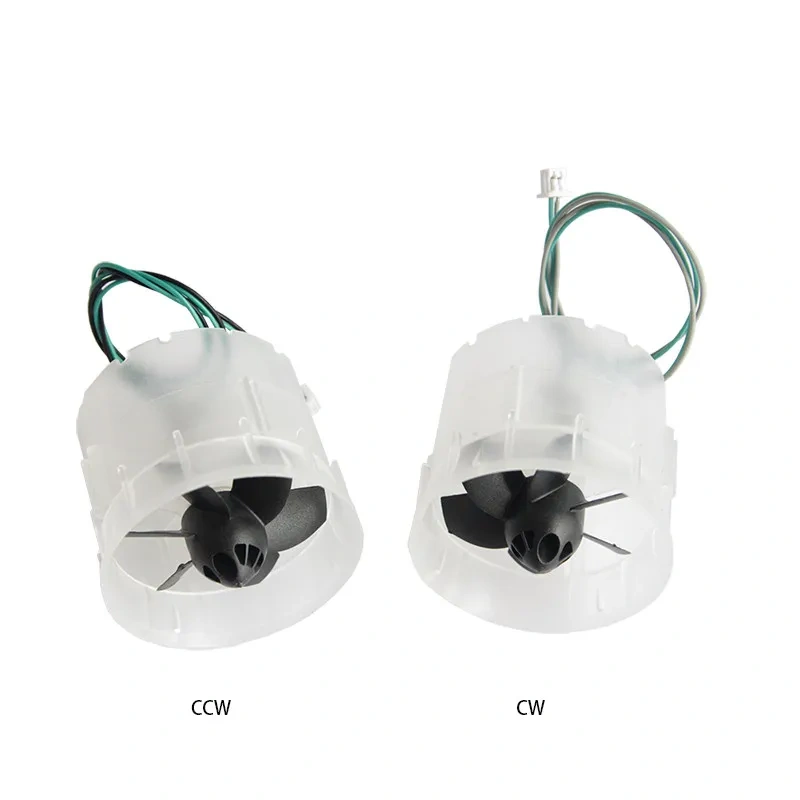

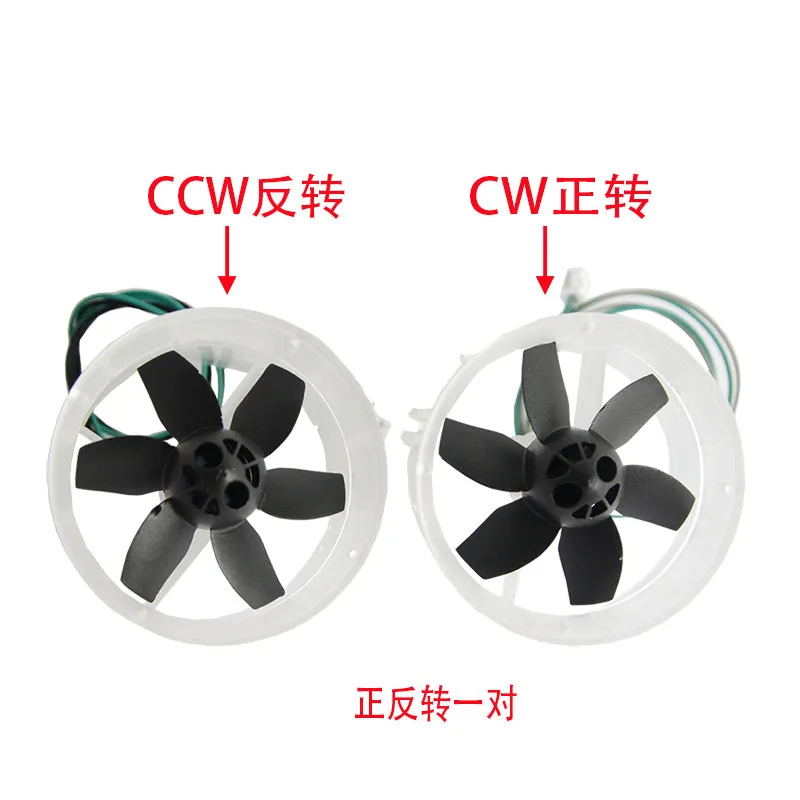

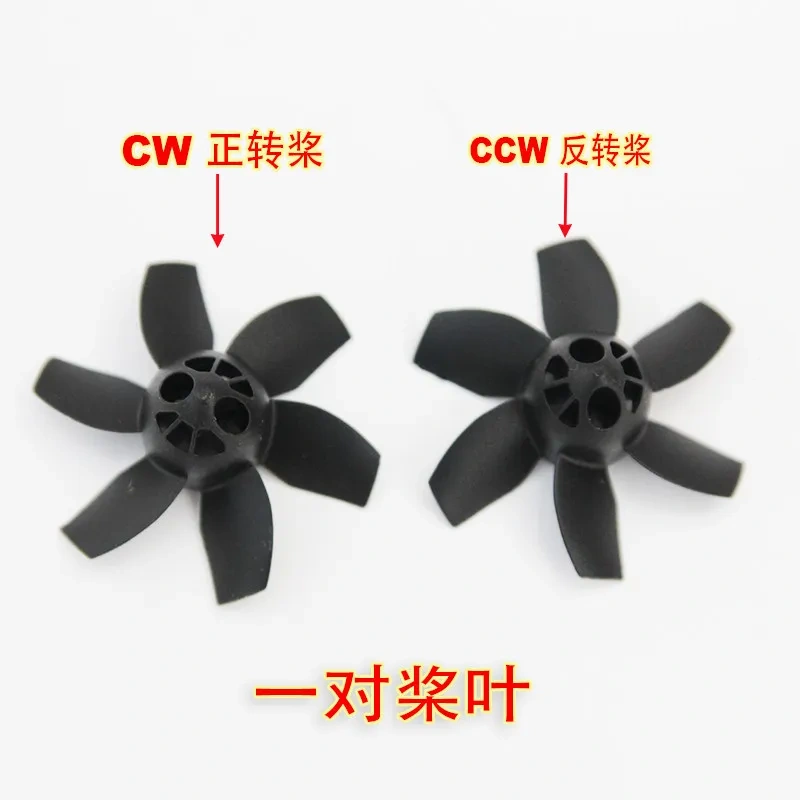

1, What is the difference between forward and reverse rotation?
A: If you just use a duct, it doesn't make any difference. On aircraft, it is always used backwards out of the air (ingestion); If there are two ductings on an aircraft, a positive and negative is required, so counter torque can be counteracted.
