Designed for multi rotor vehicles
1: Aligning throttle travel for the four in one electrical adjustment used by the multirotor vehicle
Method of use:

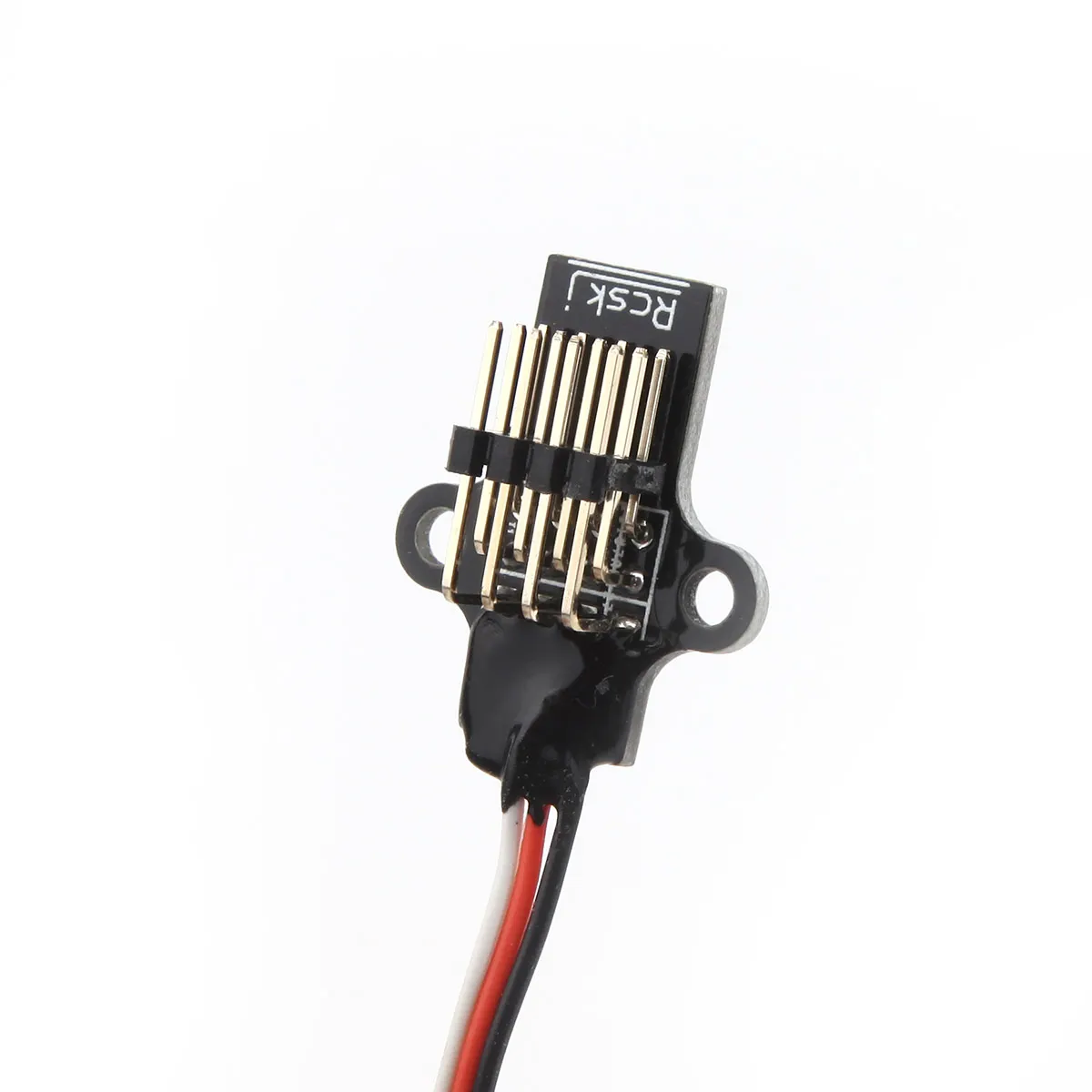

Plug the four electrically adjusted throttle control lines (S1 – S4) of the four in one electrically adjusted multirotor vehicle into the sockets of hub 1-4, respectively.
The colors should correspond, inserting the right broadcast head into either the receiver throttle channel or the flight control's throttle output channel.
Then power up the four in one electrically adjusted, and then follow the operation of the single electrically adjusted throttle travel calibration, calibrating the four electrically adjusted throttle travel at a time.
2: Used as a throttle signal distributor to distribute the throttle signal to multiple (1 – 4) electronic governors
Method of use:
Normally, keep only one of the electrically modulated built-in BEC outputs, while the other electrically modulated BEC output lines (red lines in the control rows cut off or picked out) insert multiple electrically modulated throttle control lines into sockets 1 – 4 of the hub, respectively.
