AS-DLVR-I2C Digital Airspeed Sensor - I2C Interface Pitot Tube, Compatible with ArduPilot, INAV, H743 Flight Controller

Digital Pitot Tube Airspeed Sensor for ArduPilot/INAV - AS-DLVR-I2C Module with I2C Output, Plug & Play for H743 FC

Specifications

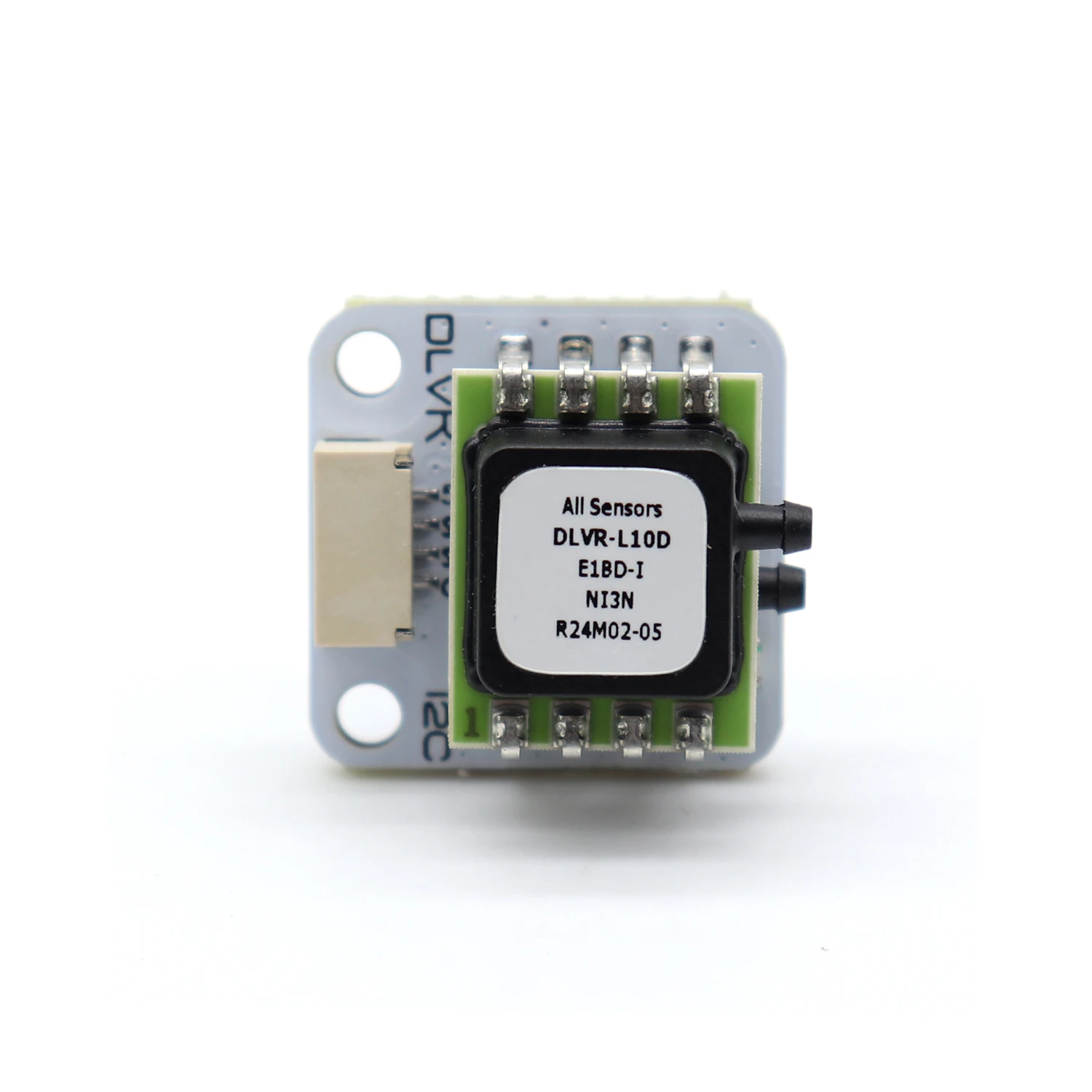

• Sensor: All sensors DLVR-L10D,  Industrial temperature range

• DLVR-L10D Sensor datasheet, pls visit  www.allsensors.com

• Interface: I2C (SCL & SDA)

• Sensor I2C address: 0x28

• Pressure Ranges: 2500Pa

• Maximum Pressure: 75kPa

• Speed Range: 227 km/h

• Operating Temperature: -20°C ~ 85°C

• Board Supply voltage: 4~5.5V DC

• Working current: 5mA

• Red LED:  3.3V power indicator

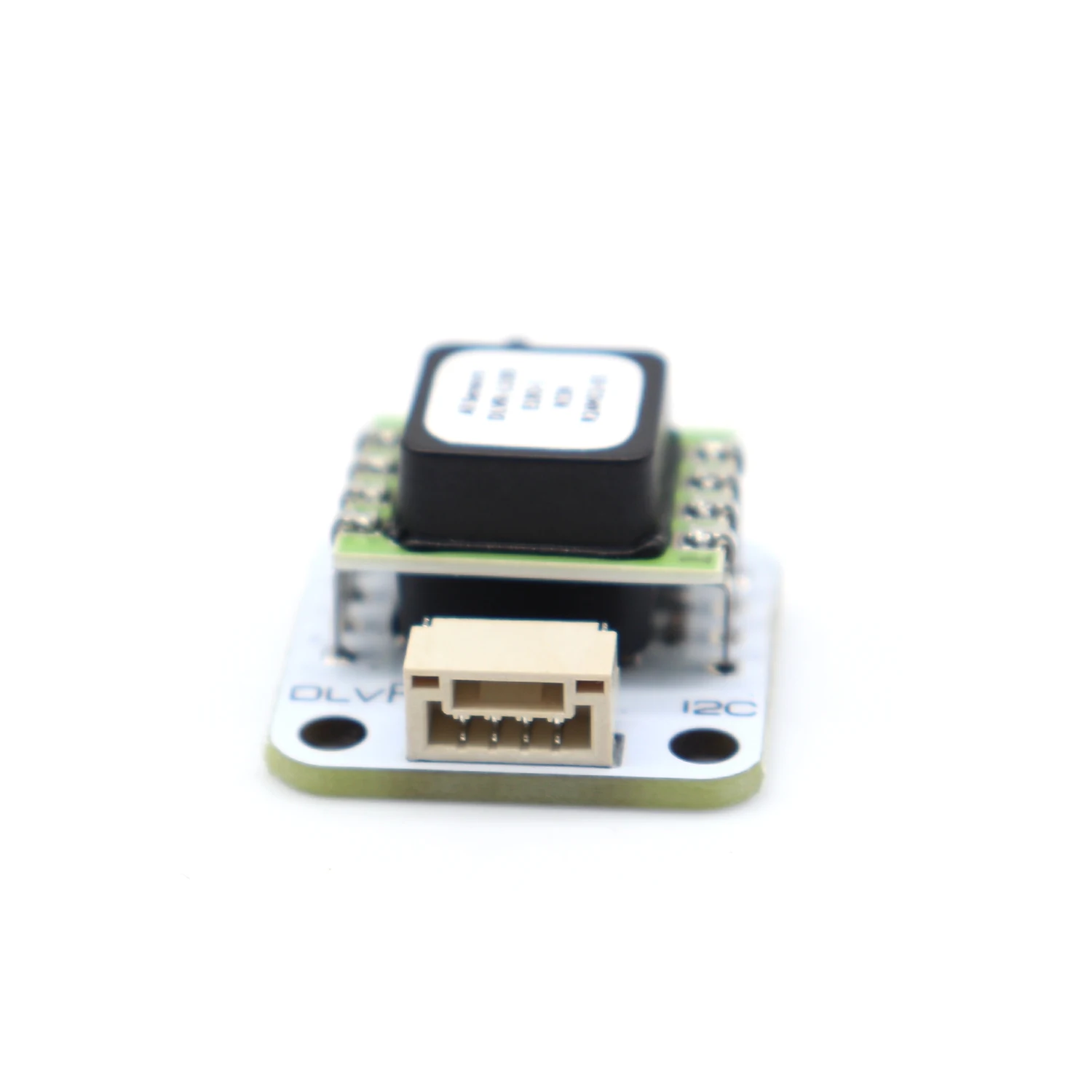

• JST-GH sequence: 5V, SCL, SDA, GND

• Weight: 3.5g (sensor board)

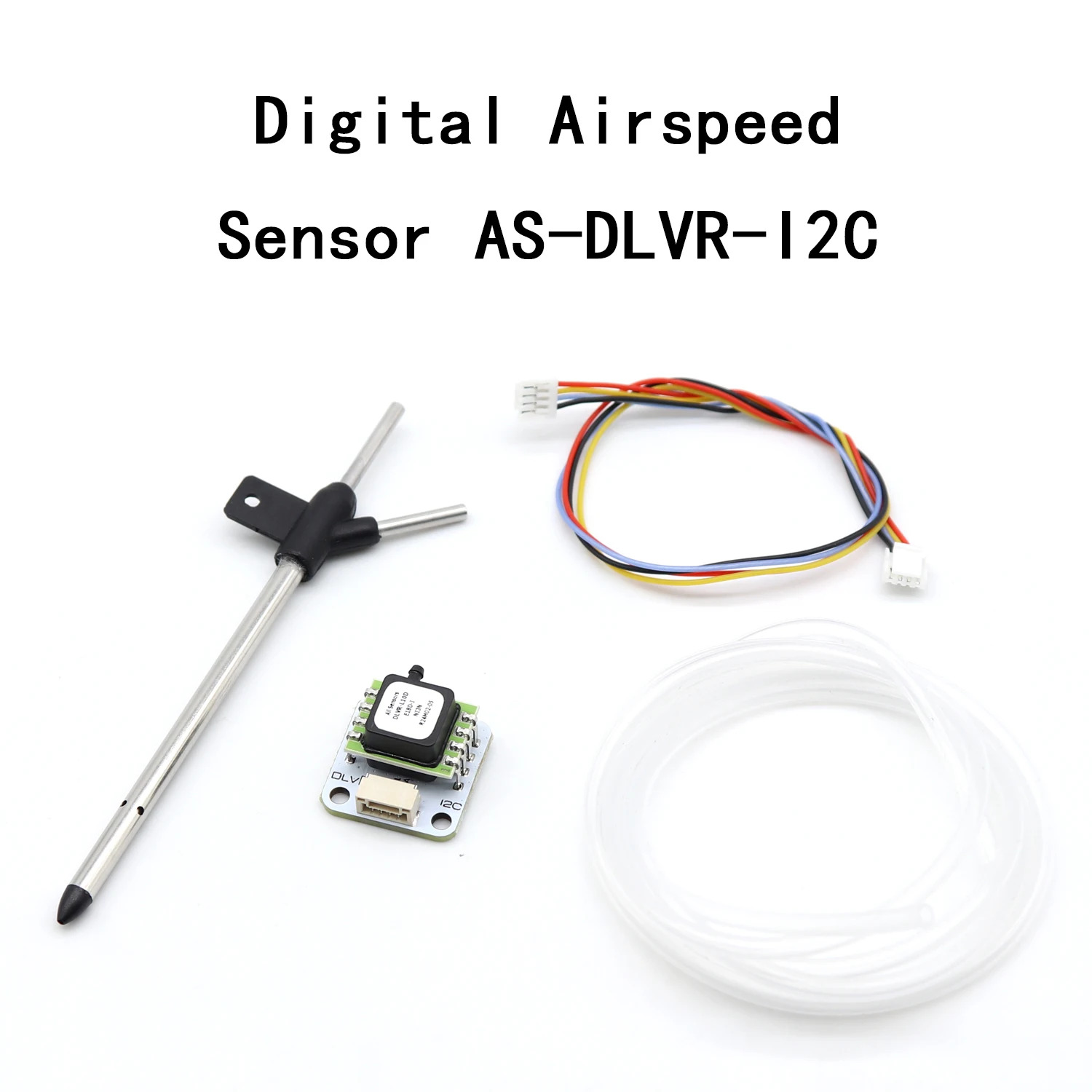

Including

• 1x AS-DLVR-I2C Sensor Board.

• 1x JST-GH-4P to JST-GH-4P 20cm silicon wire

• Pitot Tube.

• Clear silicon tubing  40cm

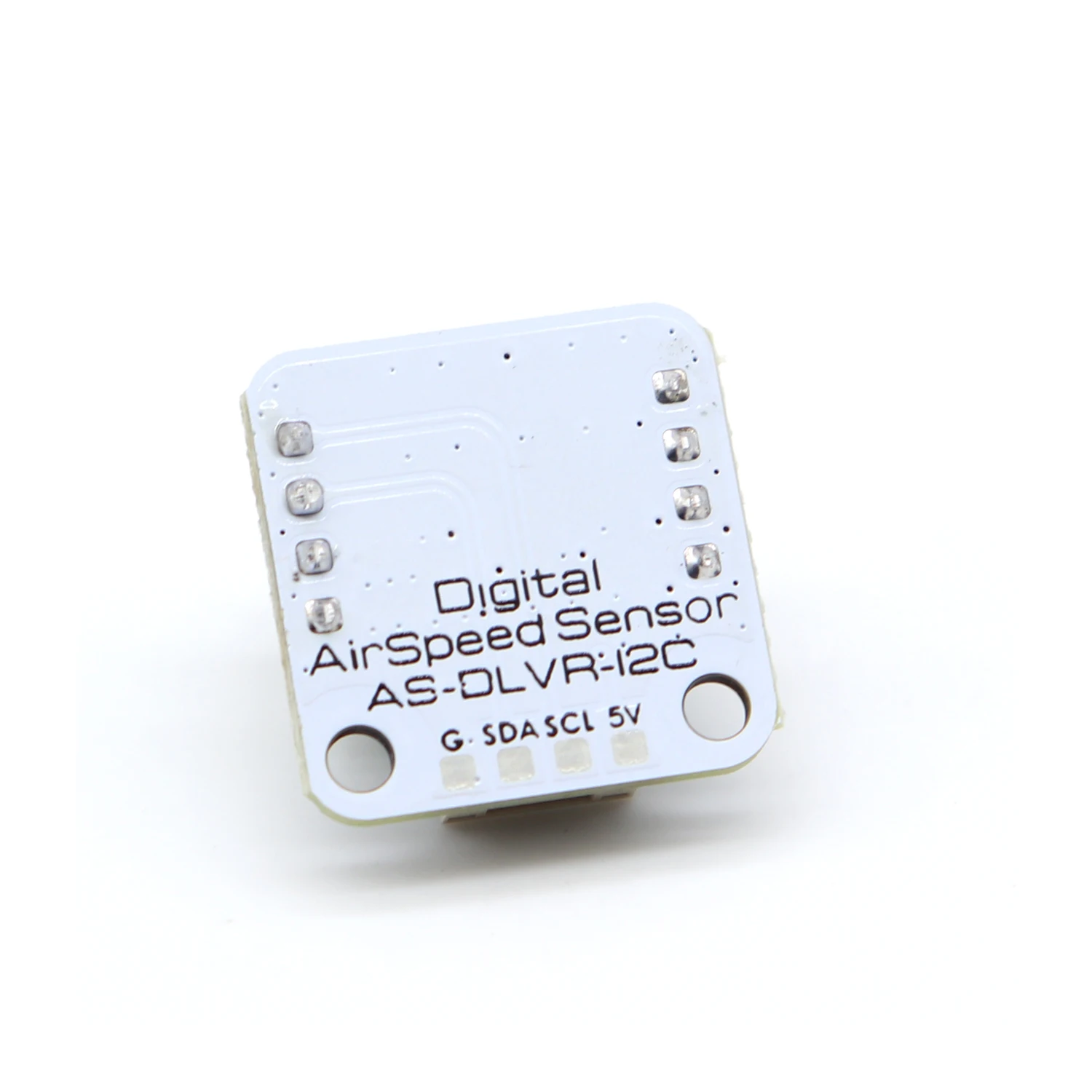

Wiring

• 5V to FC 4~5.5V

• SCL to FC I2C_SCL

• SDA to FC I2C_SDA

• G to FC GND

Parameters

• ArduPilot: ARSPD_TYPE = 9 (I2C-DLVR-10in)
