High cost performance ELRS 915 receiver FPV high refresh rate receiver
The receiver supports the WIFI connection to flash write hardware for ease and speed
With power amplifier (PA+LNA), with 100 mW telemetry output and better reaction speed
915 Mhz launch module theoretically compatible with all ELRS on the market (provided the firm ware version is 3.0+)
ELRS 915MHZ RX
Frequency range: 915 MHz FCC
Max receive refresh rate: 500 HZ
Minimum receive refresh rate: 25 HZ
Operating voltage 5V
Weight: 0.6 g (without antenna)
Firmware: BETAFPV_900RX3.2. 0
Size: 11 mm * 17 mm * 4 mm
Indicator status:
Double flash: pair code mode
Slow flash: no transmit signal received
Always on: received transmit signal
Flash: WIFI upgrade mode
Counter frequency steps:
1. After the receiver is connected to the flight control, connect the USB to power the flight control. After the first USB insertion, when you see the
The LED lights go out and immediately disconnect the USB. Repeat the operation twice, the LED starts double flash when the USB is plugged in a third time, the receiver
Go into code pair mode
2. After properly connecting the 915M (868M) ELRS high frequency head module and the remote control, copy the ELRS. LUA files to the remote control's
On the SD card, the catalog is SD card/scripts/tools, then run ELRS.LUA for the Bind operation.
3. After successful binding, the LED on the receiver becomes permanently lit, while telemetry is also received.

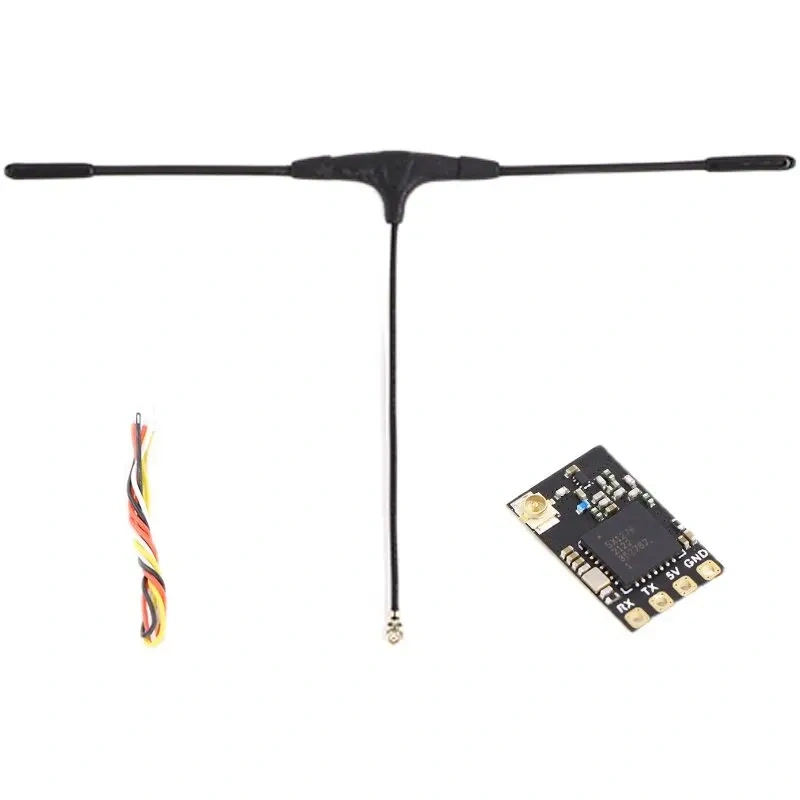

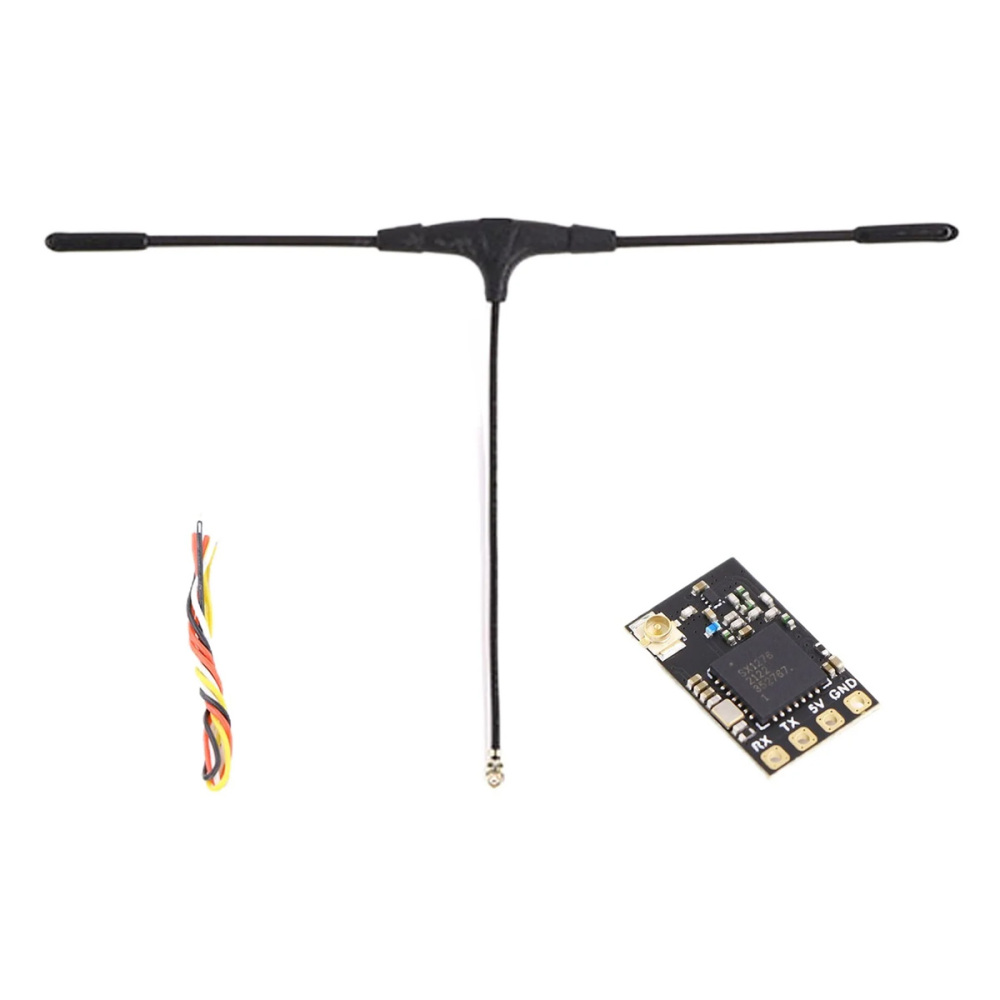

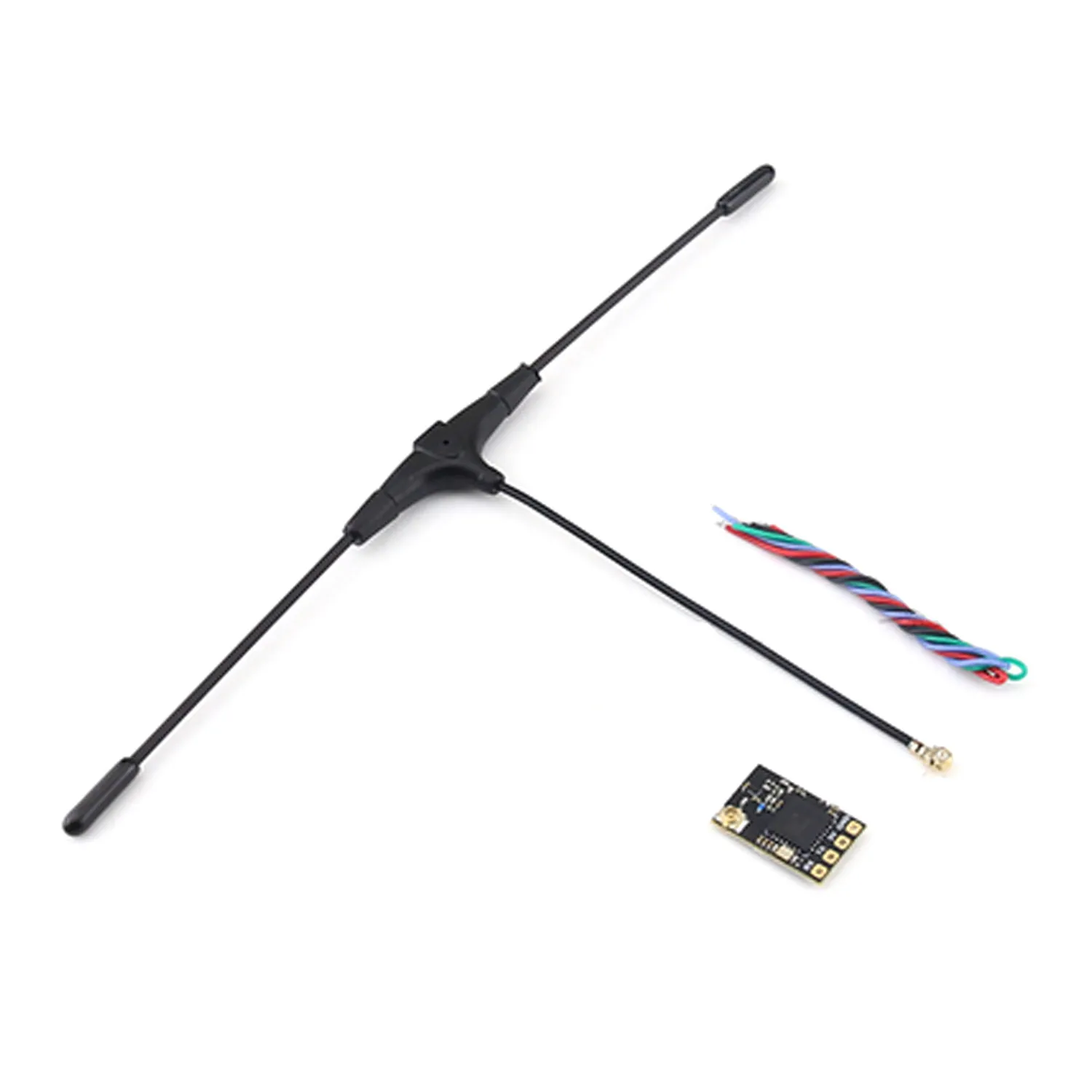

The shipment contains:
Receiver * 1
Wire * 4
T-antenna * 1
Heat shrink tube * 2
