1.32 bit processor

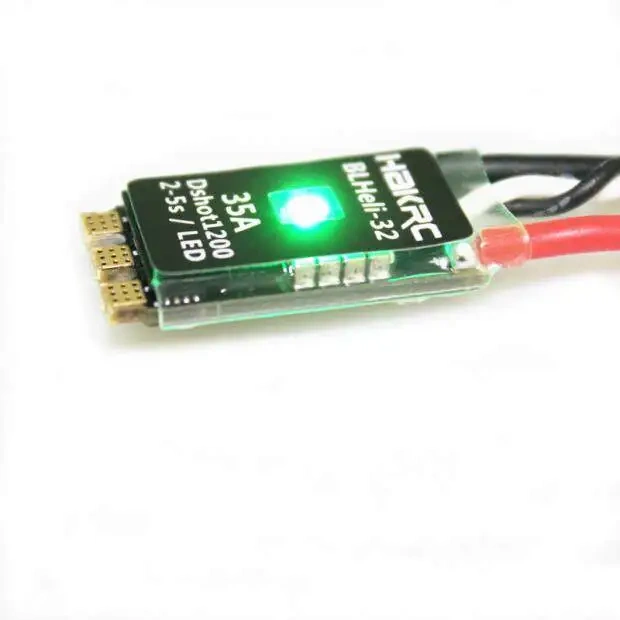

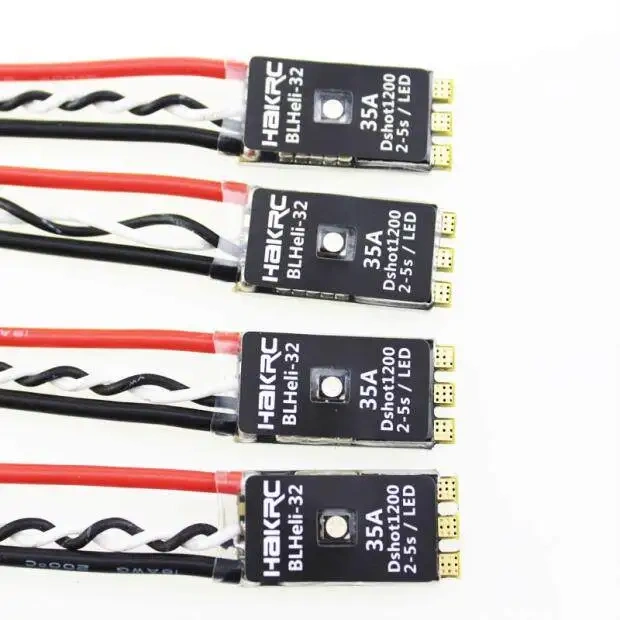

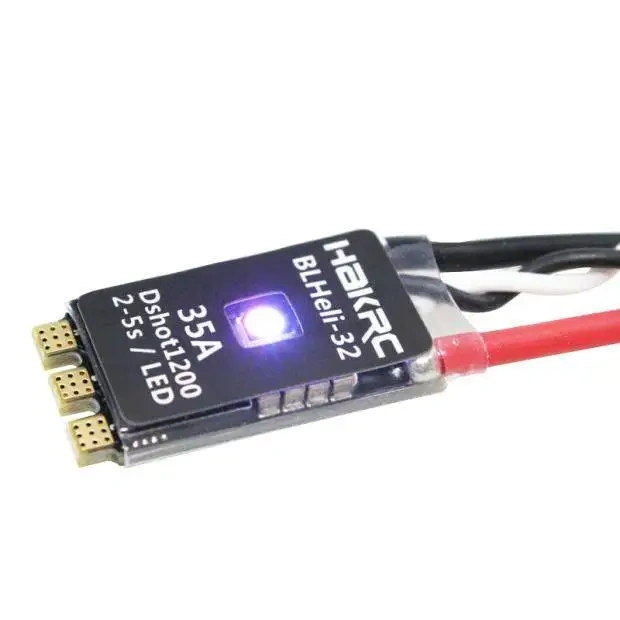

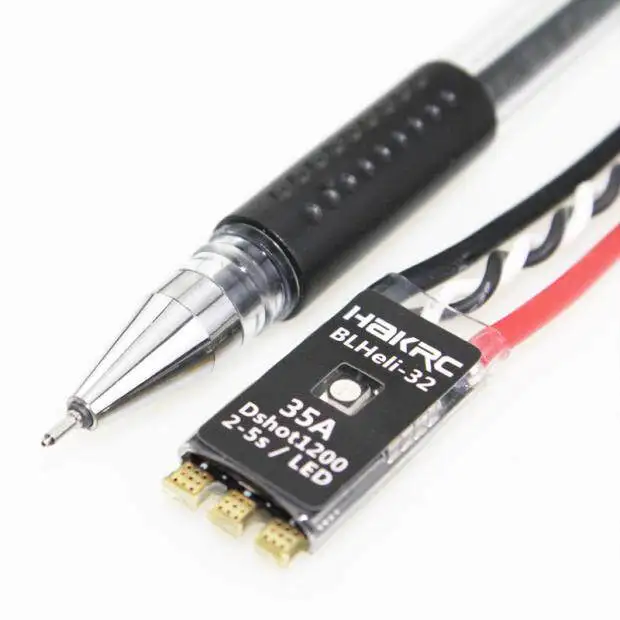

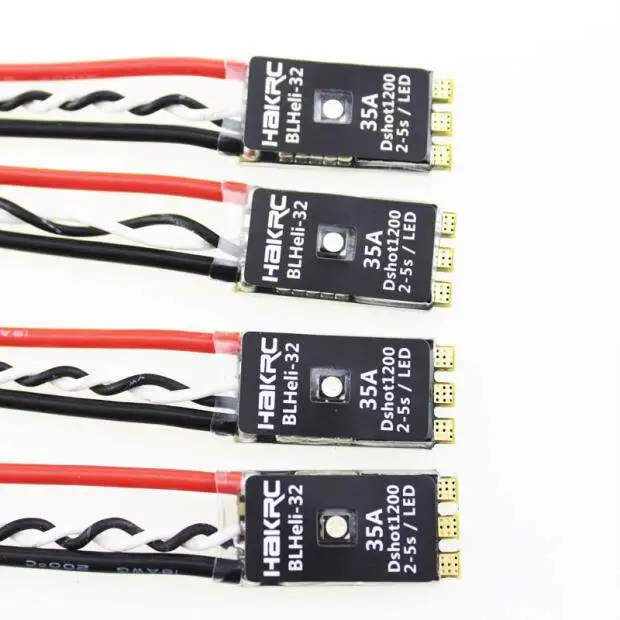

The HAKRC 35A electronic controller adopts a 32-bit processor, 2048 throttle resolution, excellent startup performance, fast throttle response, and delicate feel. Combined with unique control algorithms, the motor operates efficiently, quietly, and effectively reduces heat generation.
2. Multi aspect compatibility, supports DSHOT, no need to modify hardware.
The HAKRC 35A adopts an adaptive control system that can automatically adapt to the vast majority of motors on the market. It also supports 500HZ PWM, Oneshot125, Oneshot42, Multishot, and Dshot150/300/600/1200 without any hardware modifications.
3. Stronger playability
HAKRC 35A is equipped with a time traveling machine search function for electronic tuning. In case of accidental explosion, players can determine the position of the time traveling machine based on the electronic tuning prompt sound. It supports changing the power on sound, and players can choose their favorite BGM as the power on start sound to meet personalized power on prompts.
4. Support 3D mode
The HAKRC 35A supports 3D mode and automatic angle insertion function. With a good hardware configuration and a 32-bit processor combined with powerful algorithms, it ensures efficient 3D violence without sacrificing efficiency.
5. Rich functional settings
The tuning software provides rich parameter configurations, including throttle stroke settings, pitch angle settings, and active braking mode. Users can set parameters by connecting CleanFlight and BetaFlight to an electronic controller.

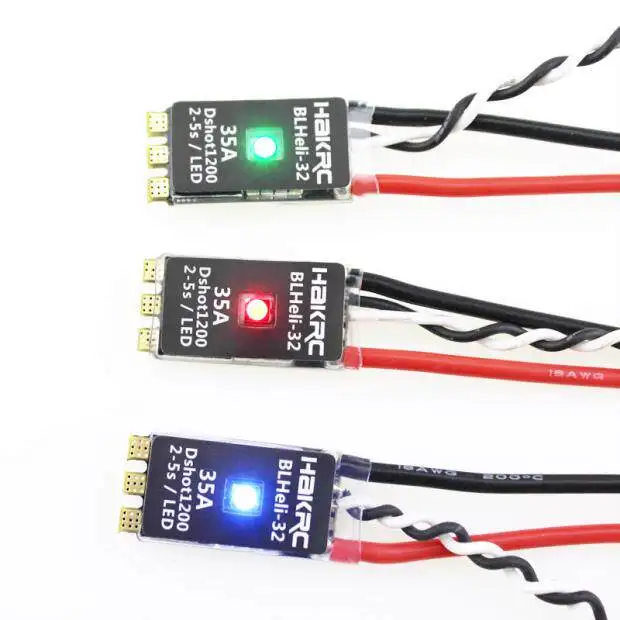

Integrated LED lights, with the ability to independently change the color of the lights
6. Technical parameters:

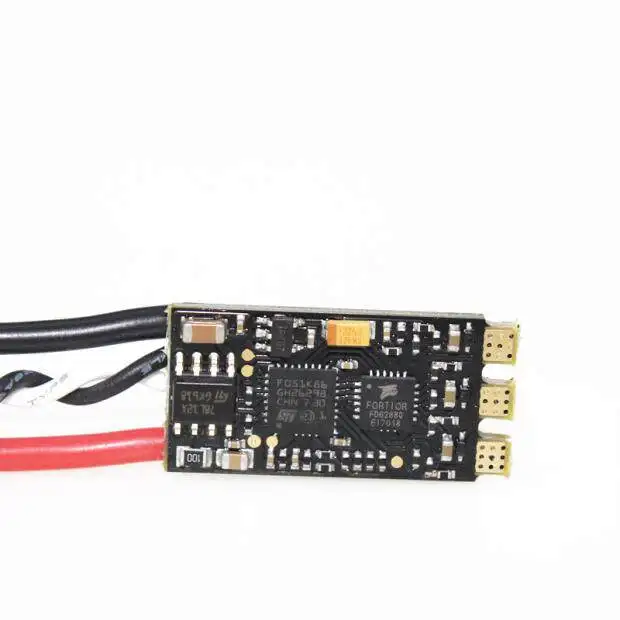

Microcontroller: STM32F051
Program: BLHeli32 bi
Input voltage: 2-5 Cell LiPo
Continuous current: 35A;
Mosfet: TOSHIBA N-channel, independent half bridge driver chip
PCB: 30oz copper thick, gold-plated
