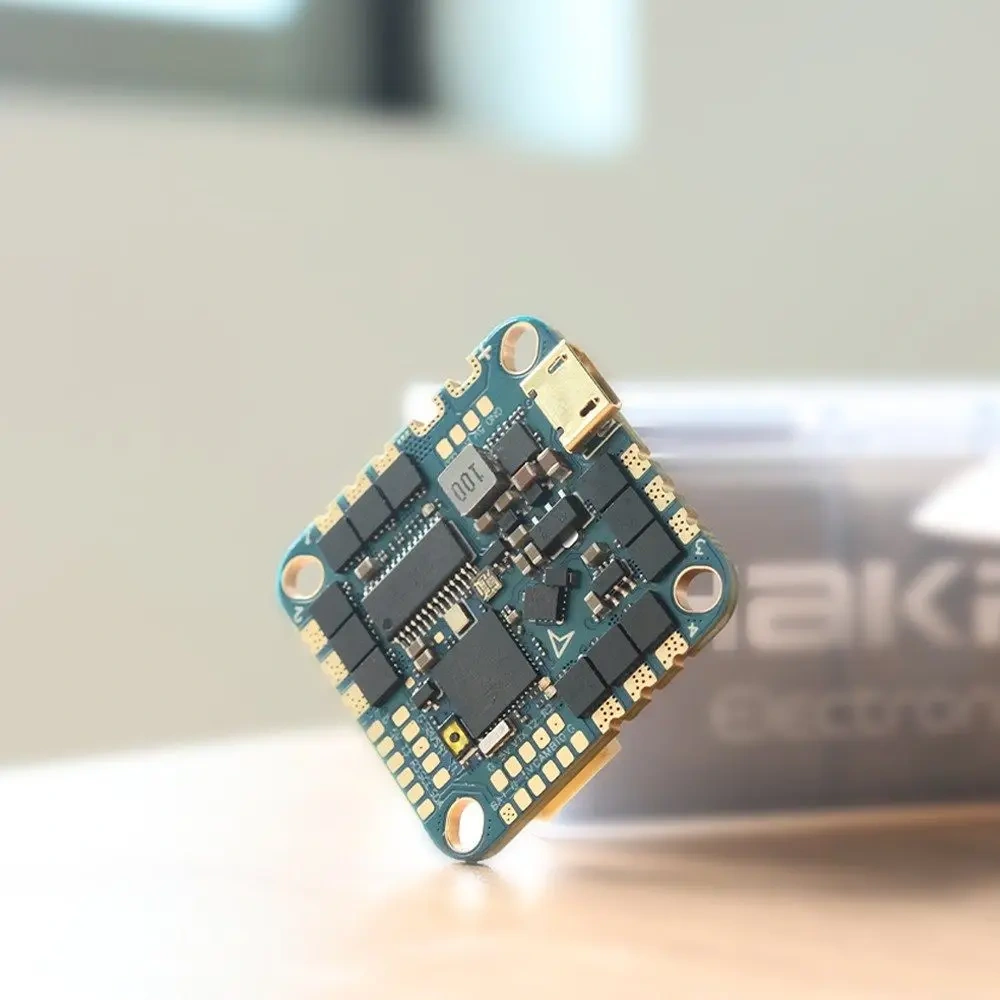

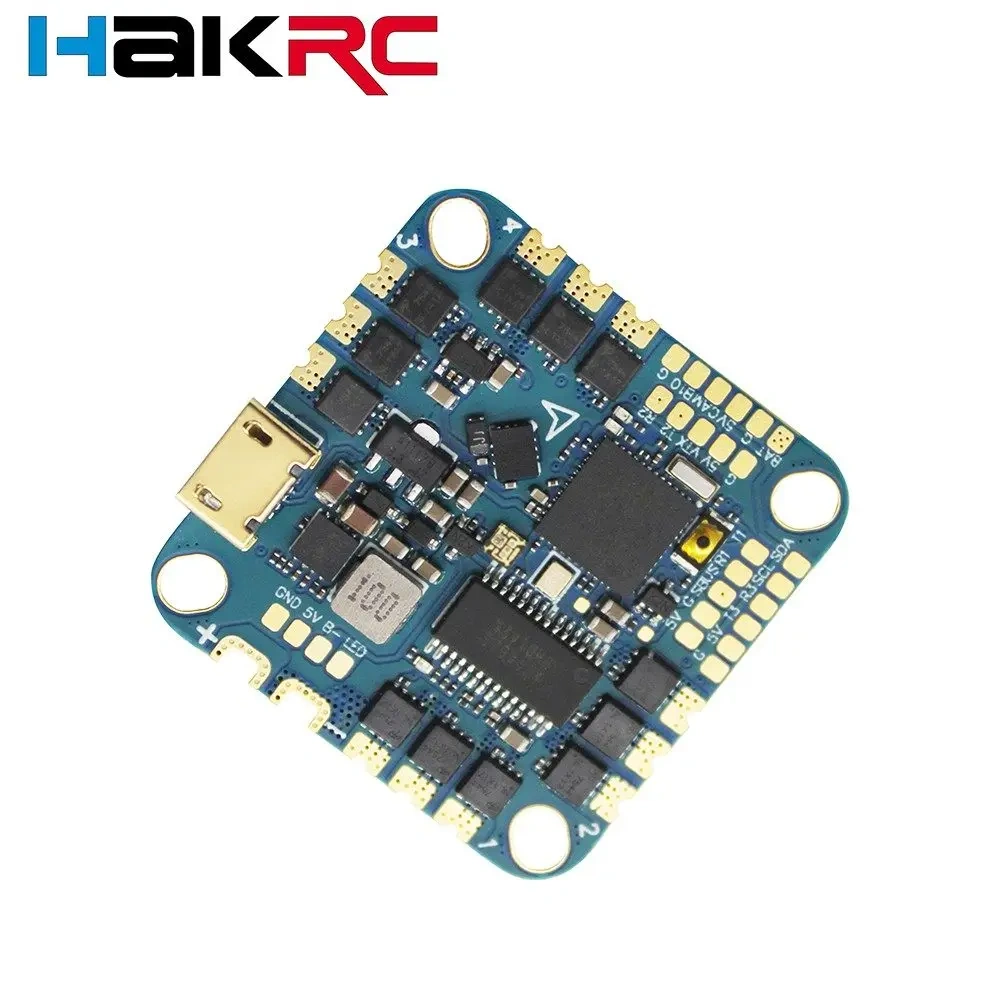

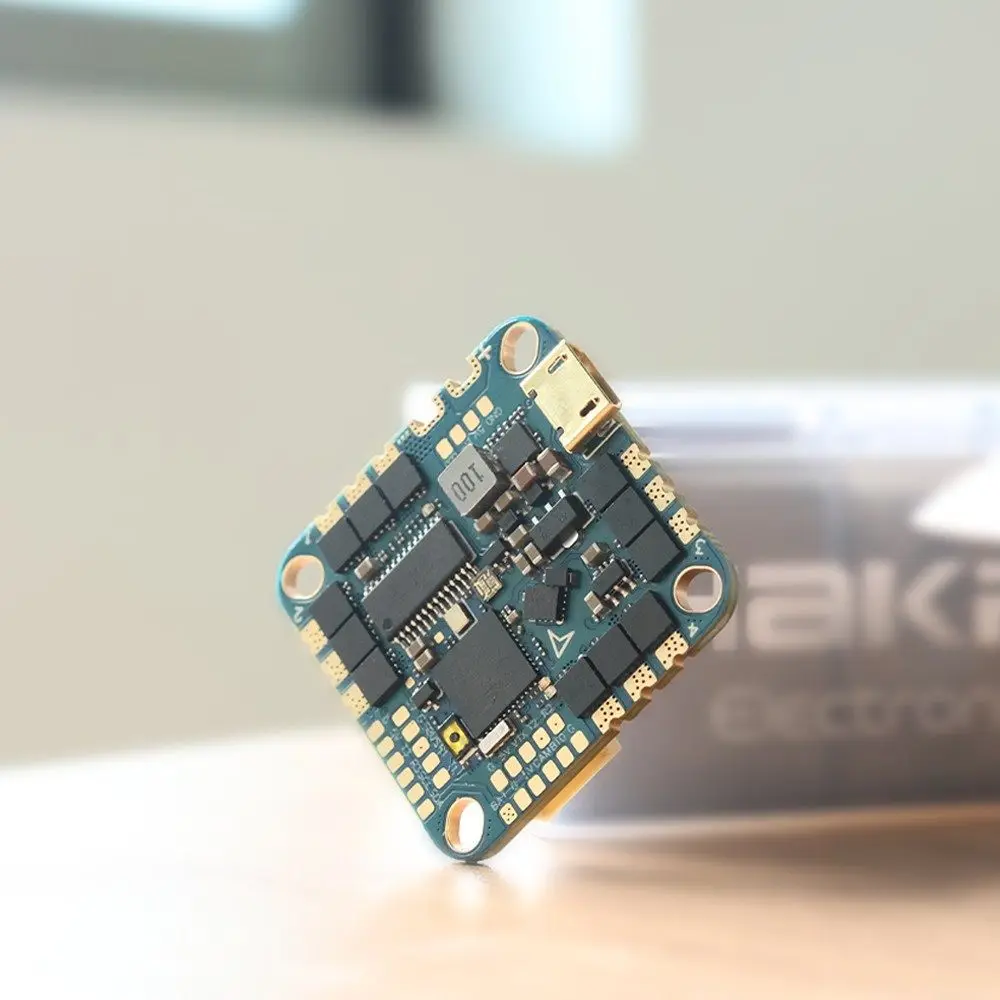

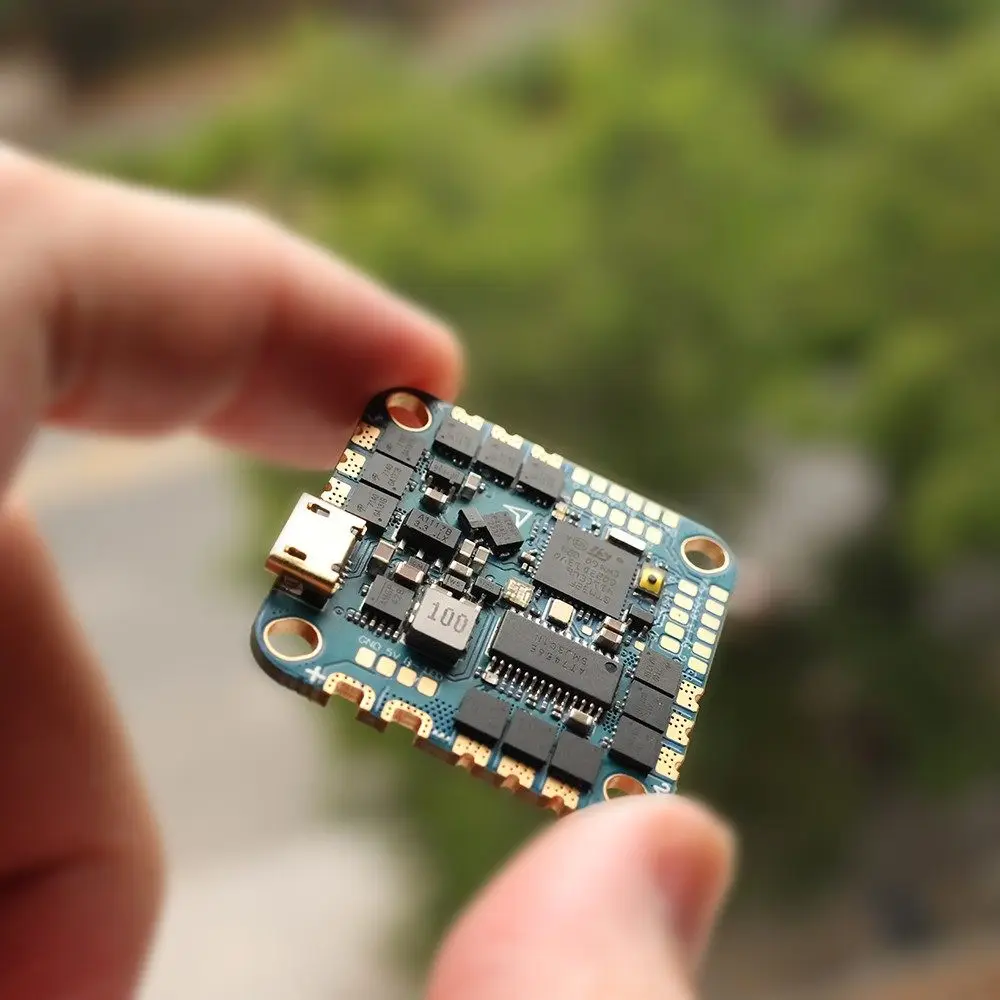

1. The PCB uses a high-end 8-layer 2OZ thickened copper skin with greater over-current capability and good heat dissipation.
2. MOS with imported 30V high current tolerant MOS, long life with strong load capacity
3. Industrial grade LD0 with high temperature resistance.
4. High quality Japanese Murata capacitor with strong filtering performance. Size: 33 * 33mm (25.5 mm – 26.5 mm mounting hole)

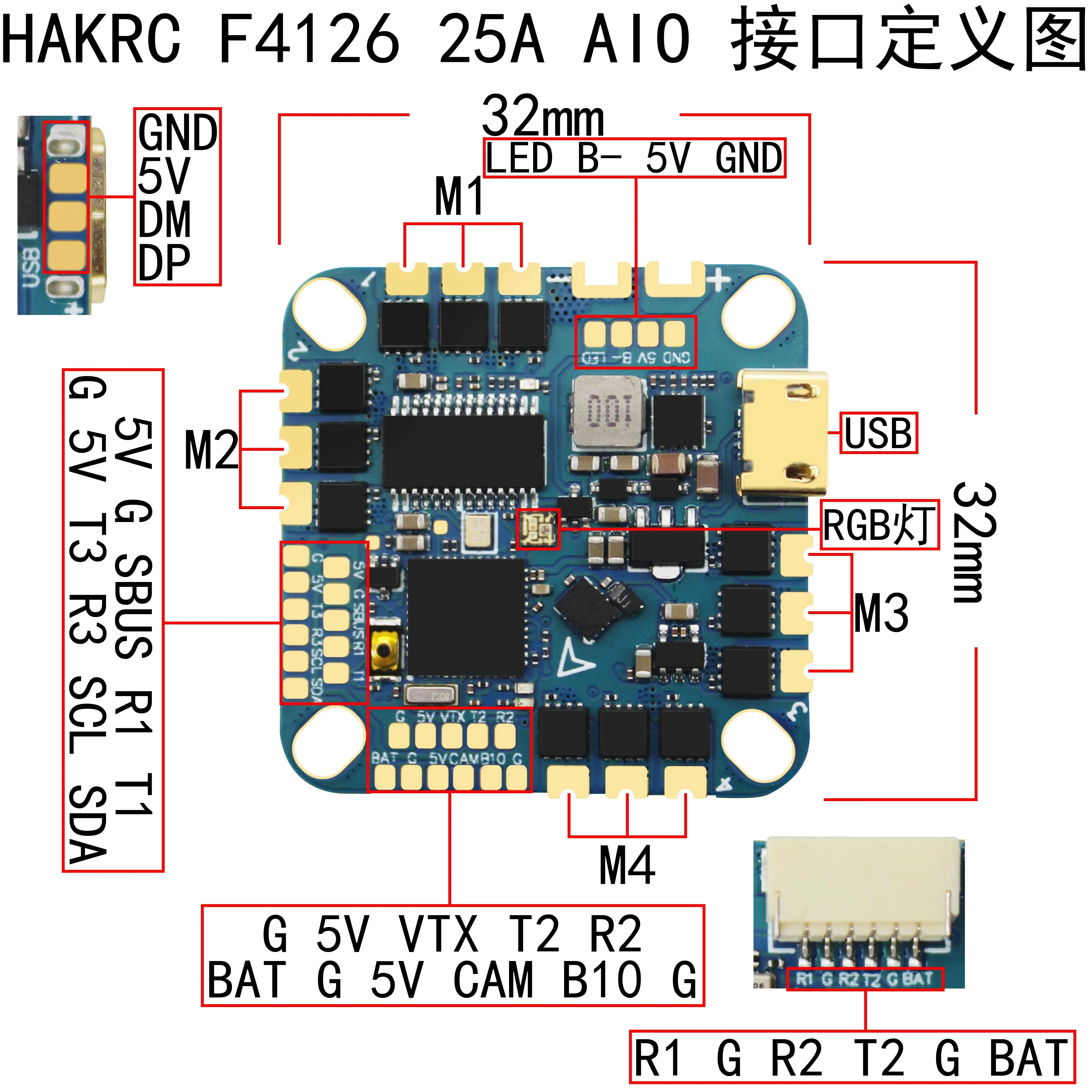

Serial port number: 2+1 (soft serial port)
Package size: 63 * 32mm
Product net weight: 7g
Package weight: 25g
Flight control parameters

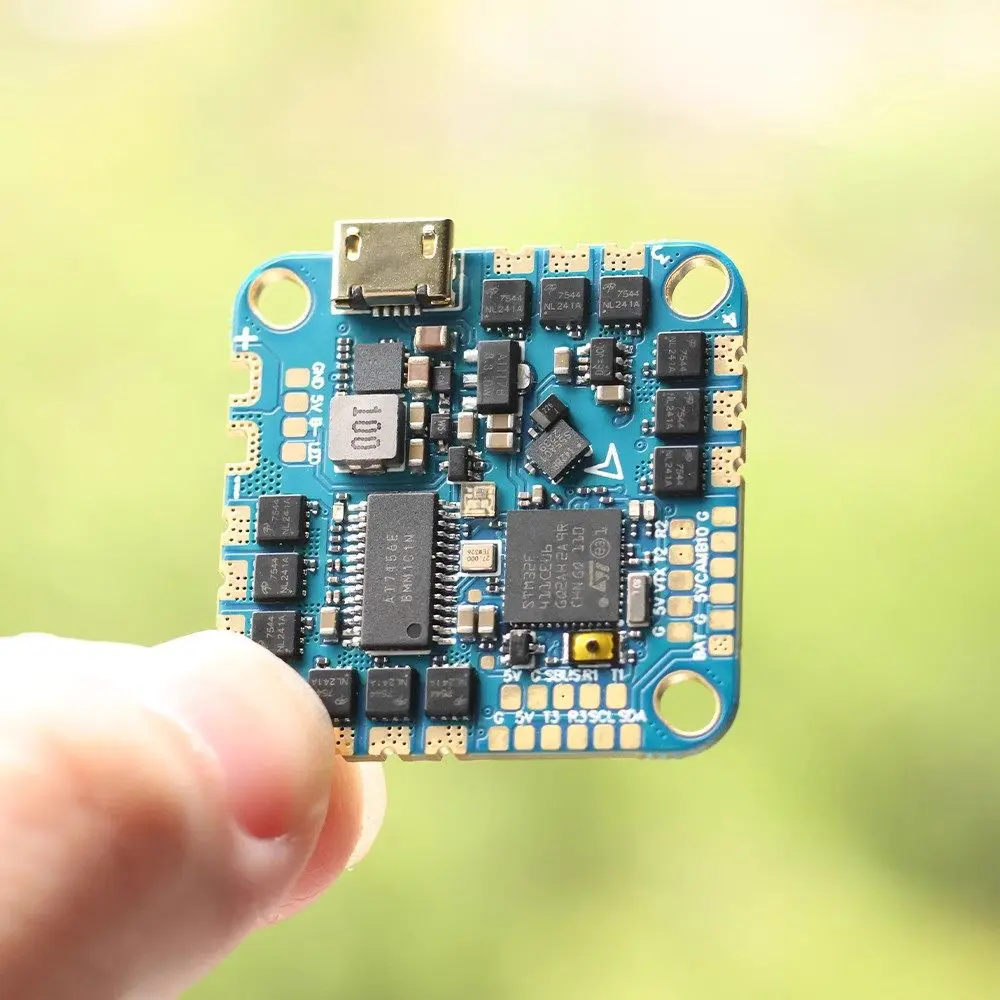

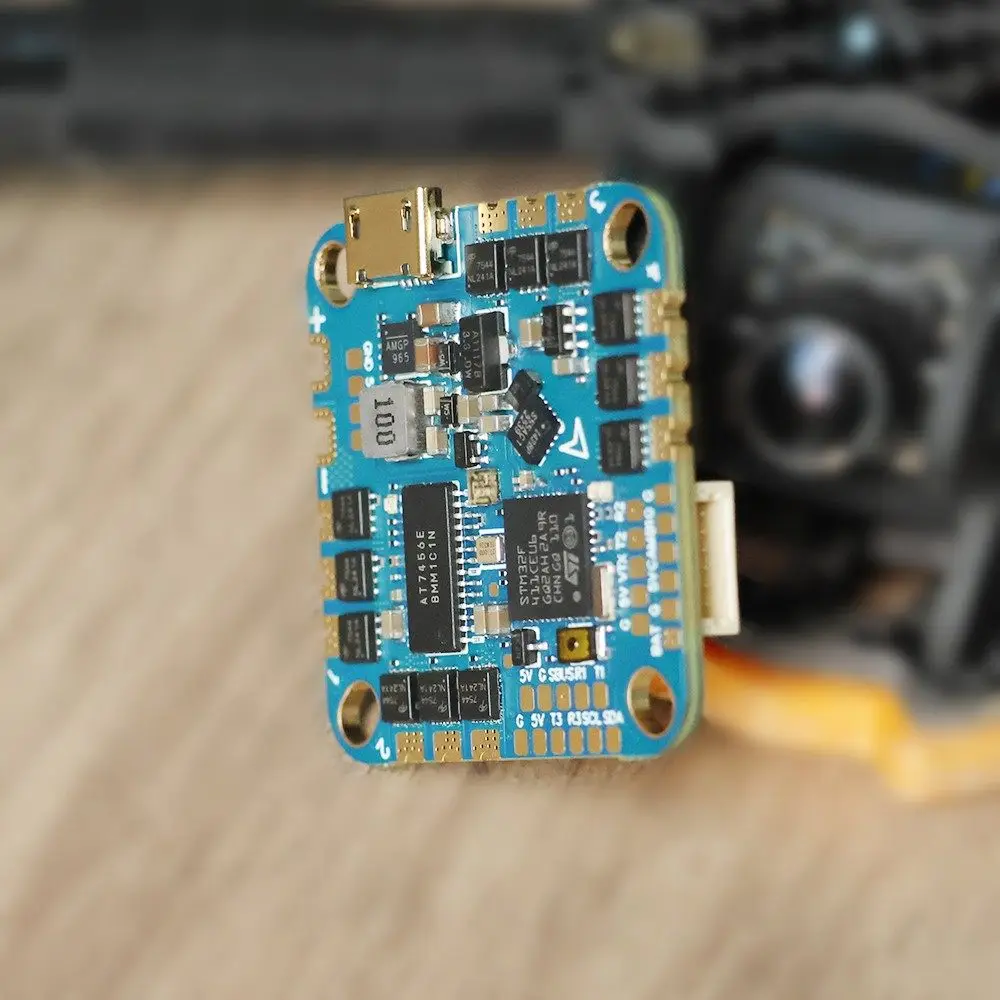

CPU:STM32F411CEU6
IMU:ICM42688
OSD:AT7456E
Barometer: integrated
Black box: 16M
BEC:5V/3A
LED: Dimmable LED light
Sensors: built-in current sensor
Firmware version: HAKRCF411D
Receiver: ELRS/FRSKY/Futaba/Flysky/TBS Crossfire/DSMXDSM2 receiver
Electric tuning parameters:
Firmware version: BLHELIS (G-H-20)/(G-H-30) protocol support: PWM, 0neshot125, 0neshot42, Multishot, Dshot 150, Dshot 300, Dshot 600 Input voltage: 2S-4Slipo/2-6S Lipo
