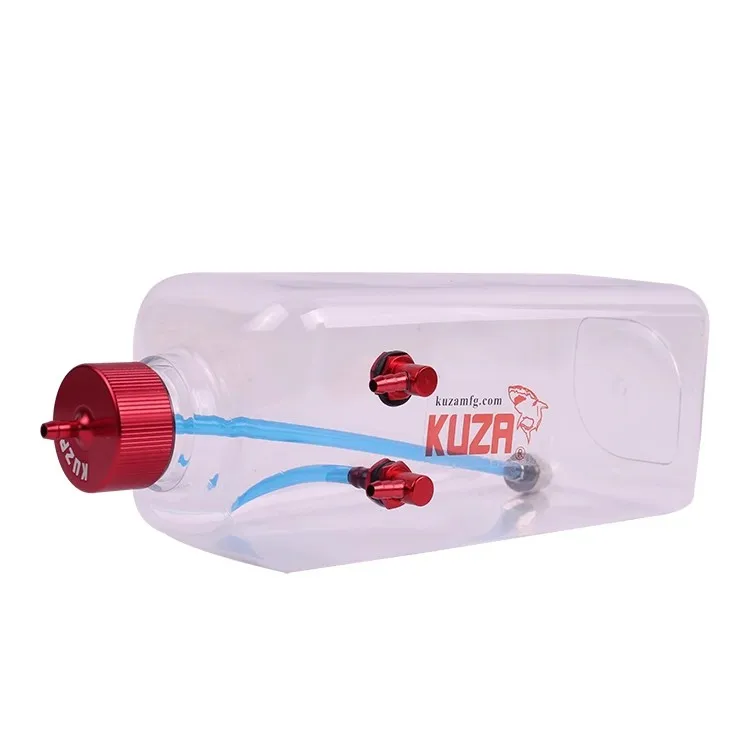

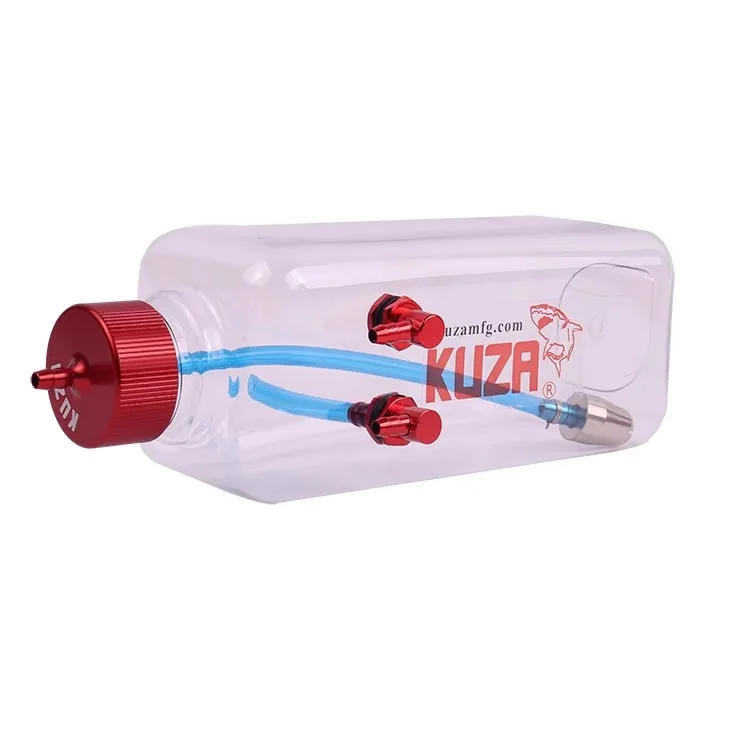

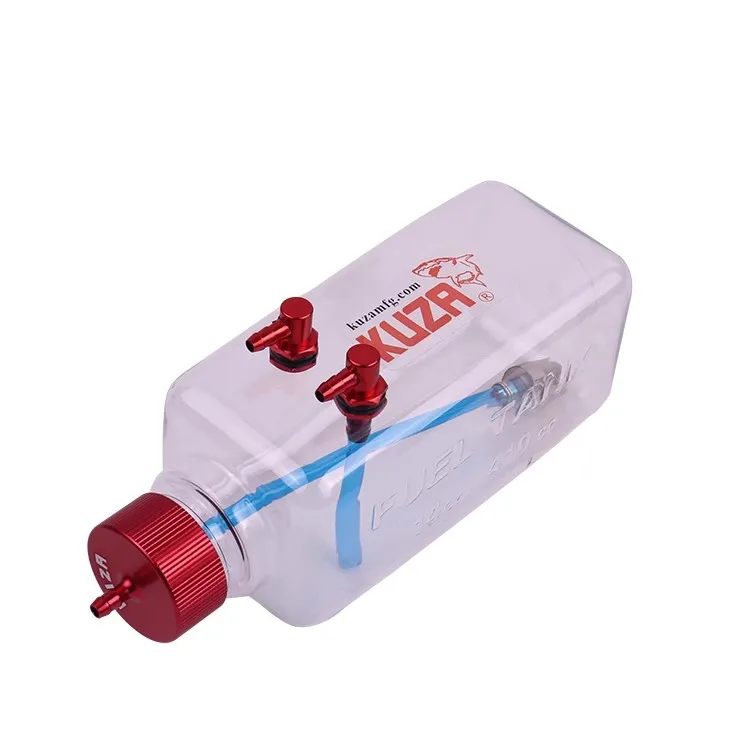

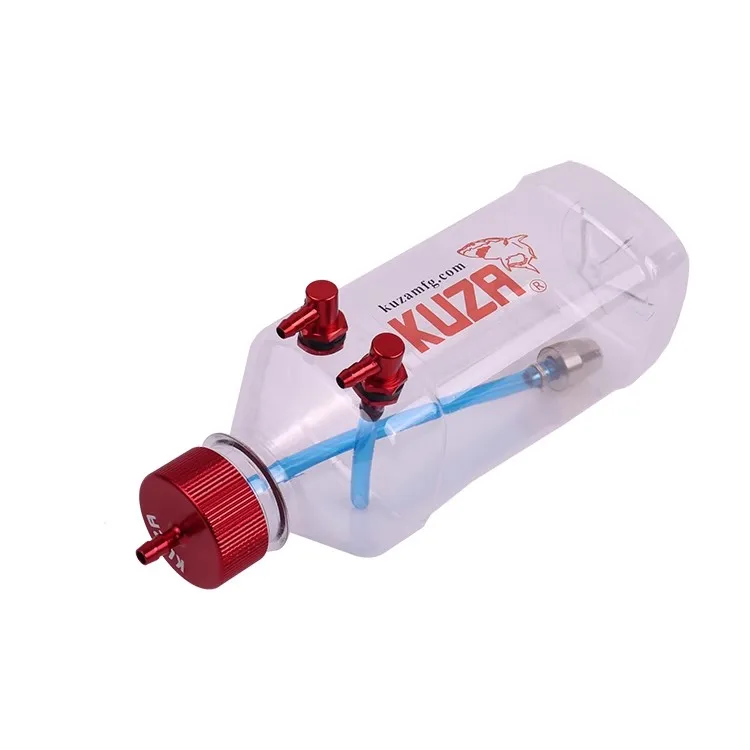

KUZA (Tigershark) New clear fuel tank V2 V3 version (nozzle upgraded to CNC anodized aluminum nozzle) Note: New without red decal, no effect on use, don't touch if you care
Lot will be slightly different, please accept the physical received, mind not to take, such as return, postage paid
Zhuhai Golden Wings Model has been working continuously for premium 3D aircraft with the new KUZA (Tigershark) transparent fuel tanks, which are configured on all new petrol aircraft from the Golden Wings model.
This fuel tank for fixed wing gasoline engines can also be used for methanol
After continuous improvement, the V2 V3 version of the KUZA (Tigershark) clear fuel tank was introduced, with all new petrol aircraft being fitted with the KUZA (Tigershark) clear fuel tank.

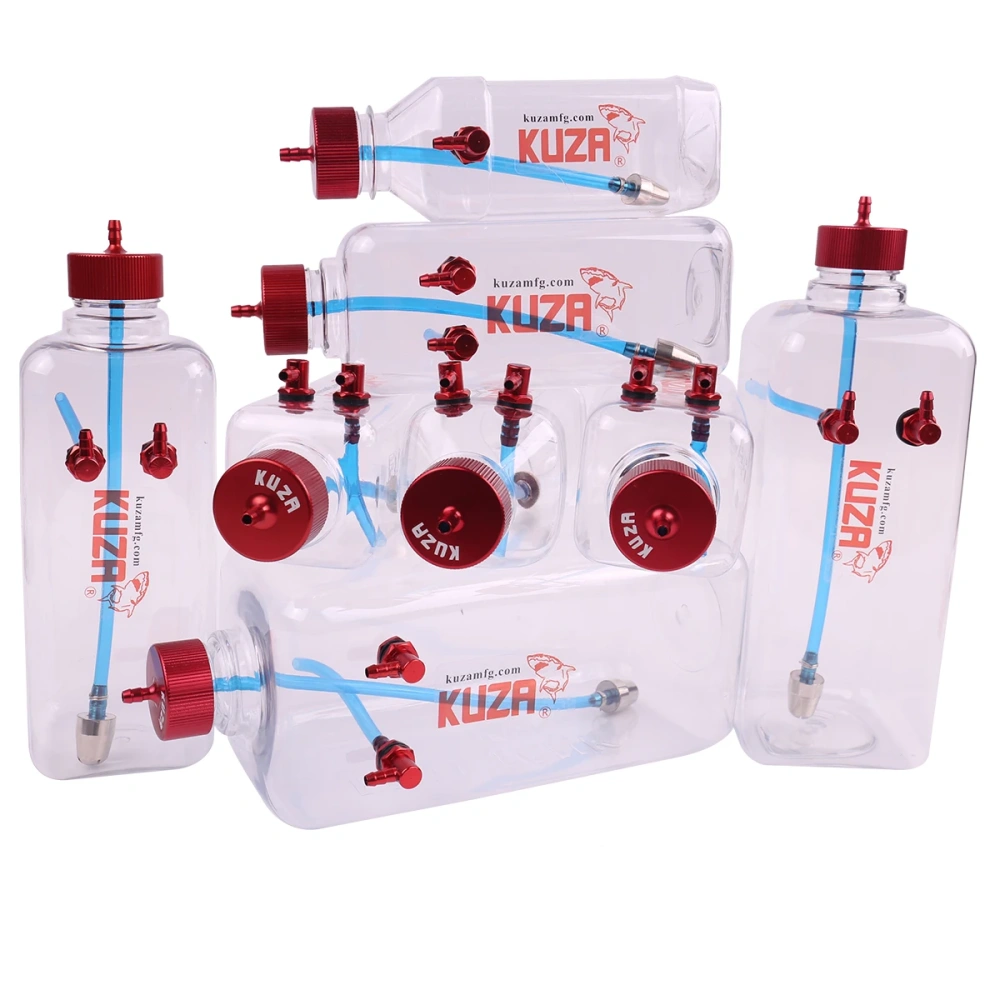

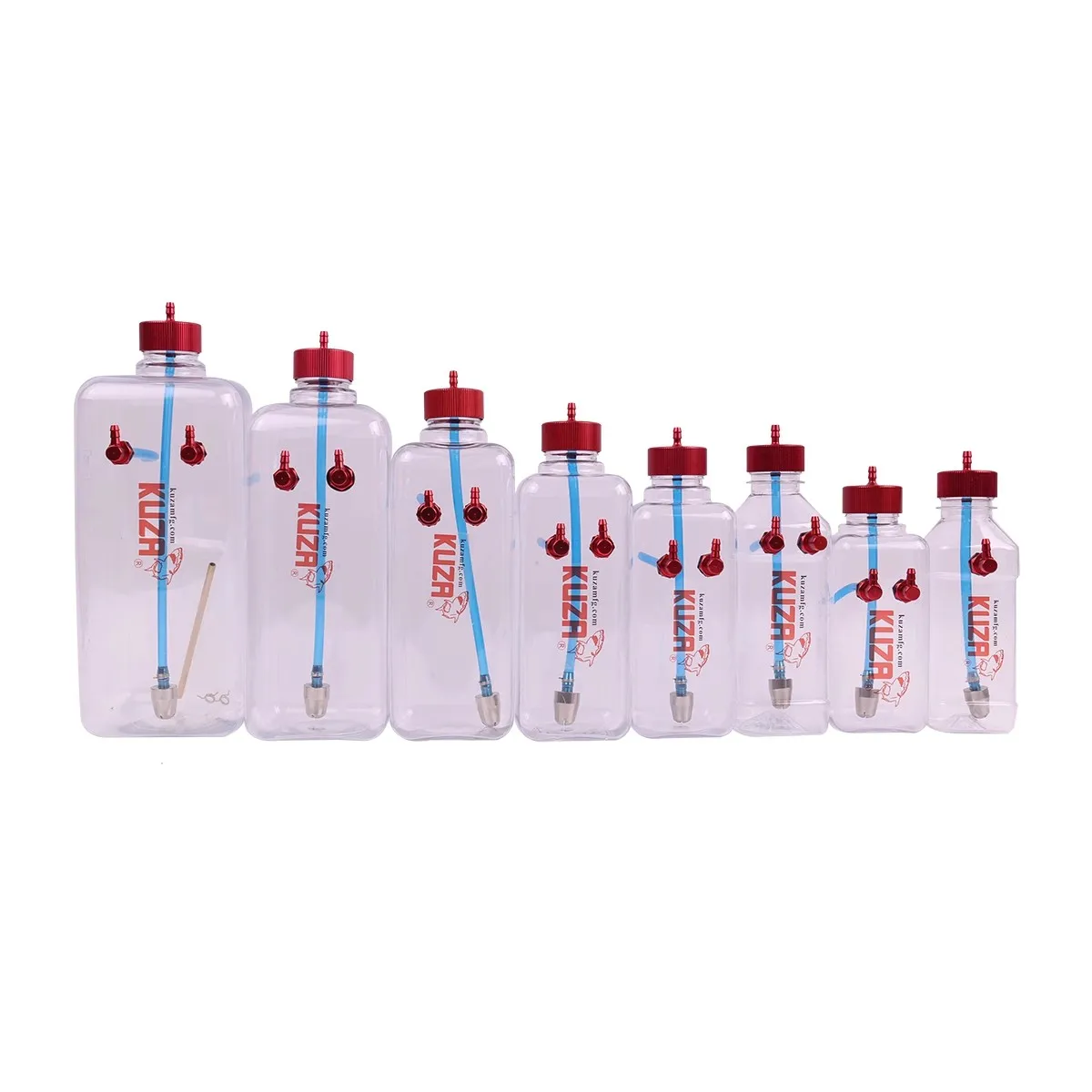

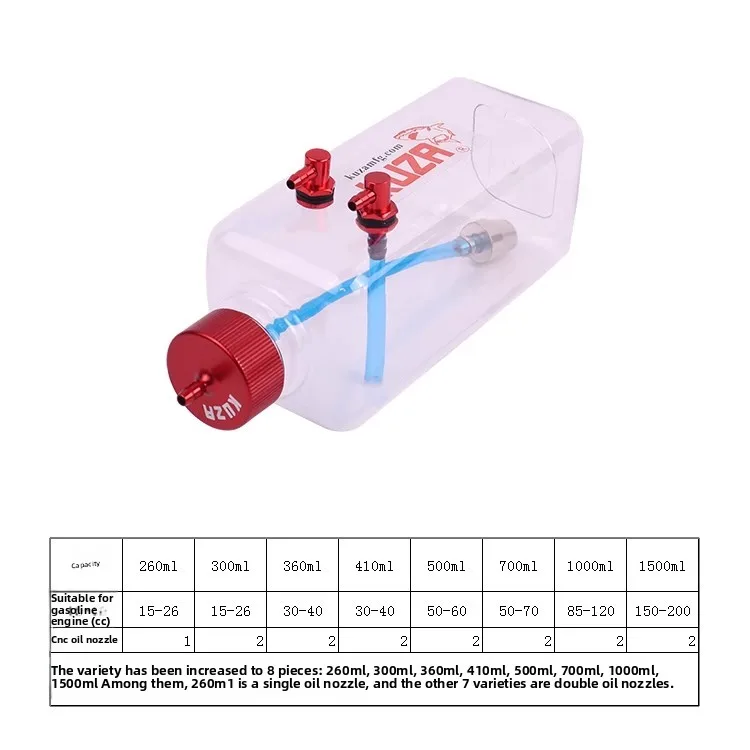

Varieties have been increased to eight: 260 cc, 360 cc, 300 cc, 410 cc, 500 cc, 700 cc, 1000 cc, 1500 cc
Of which 260cc is a single nozzle, the other 7 varieties are twin nozzles
260 mL, 300 mL fuel tanks, suitable for 15 – 26CC aircraft
360ml fuel tanks, suitable for 26-40CC aircraft
410ml fuel tanks, suitable for 35-40CC aircraft
500ml, 700ml fuel tanks, suitable for 50-70CC aircraft
1000 ml fuel tanks, suitable for 100 – 120CC aircraft

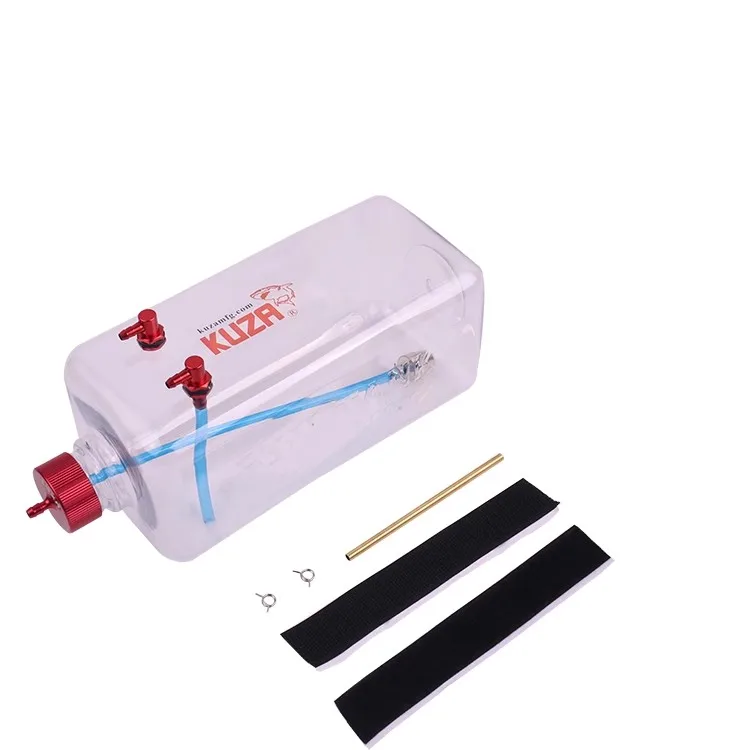

1500cc fuel tanks, suitable for 150-200CC aircraft, high configuration version, CNC brass nozzles, with fuel tanks, heavy hammer tubing copper tubing, to avoid the heavy hammer not picking up oil during violent 3D movements.
1. The fuel tanks were designed with full consideration given to leakproofness, toughness and strength, and would not rupture or leak in the event of shock and impact.

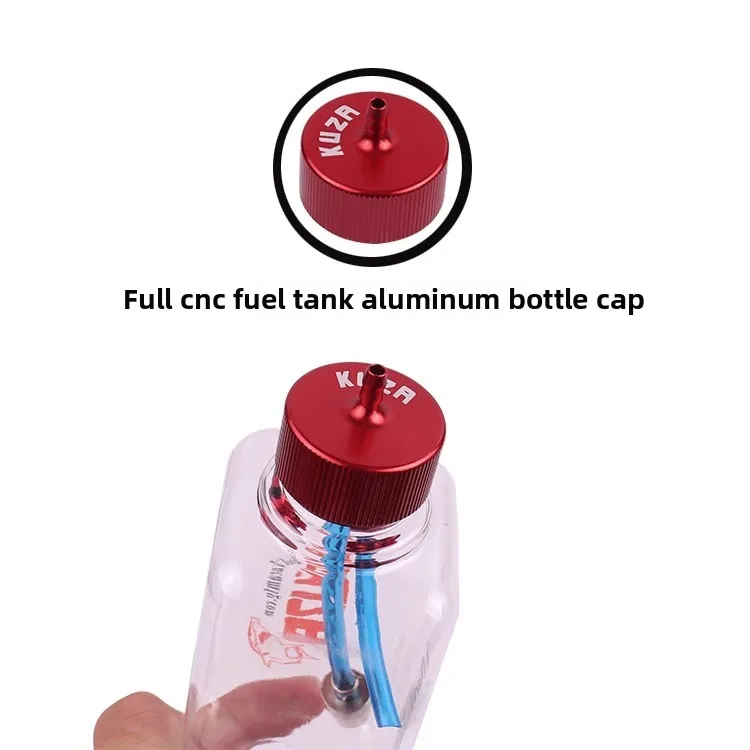

2. One piece metal refueling cap, fully CNC machined;

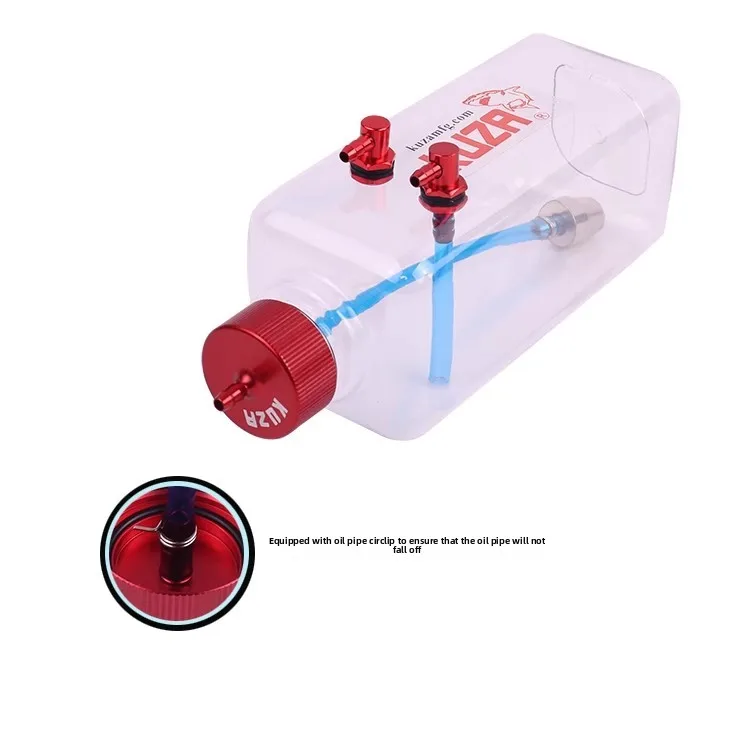

The oil distribution pipe snap ring ensures that the oil pipe does not fall off.

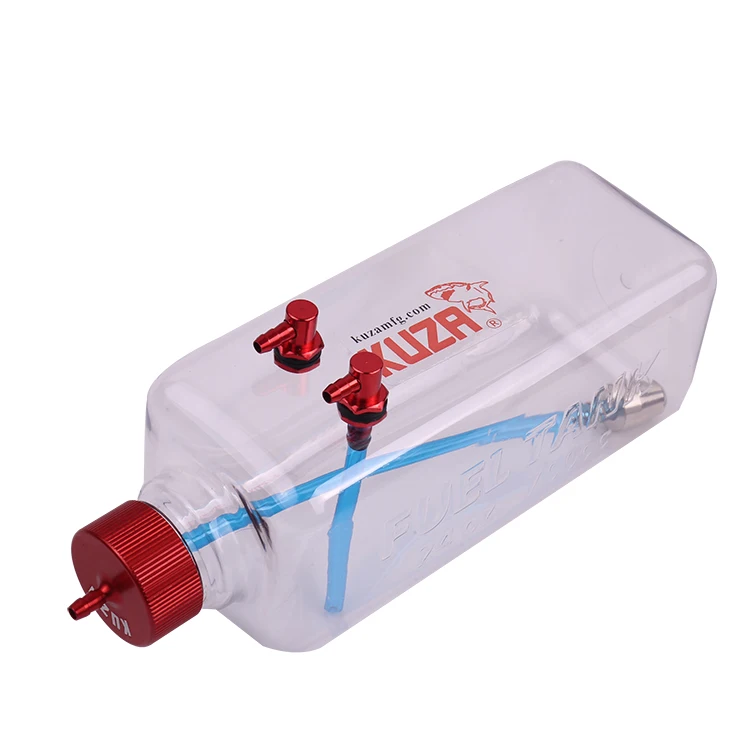

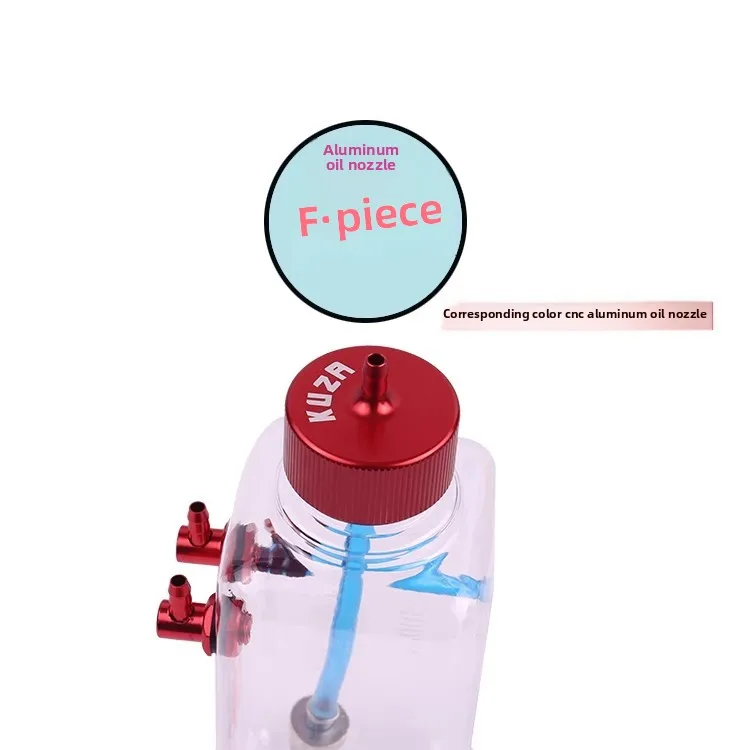

3. Specially developed metal aluminum nozzle, durable and beautiful.

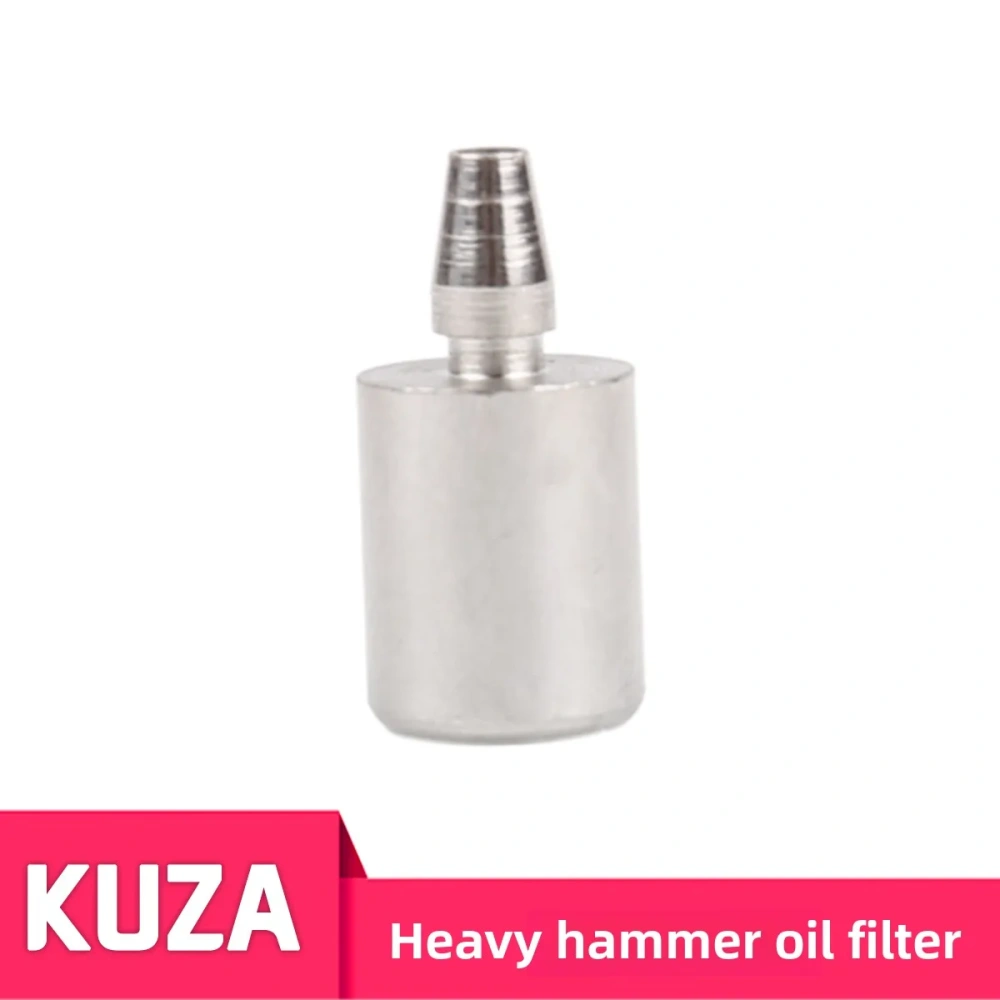

4. Refined oil hammer and oil pipe, free flying constant oil, with moderate oil pipe selected, which can support the oil hammer, allowing it to stay at the bottom of the bottle at all times, constantly supplying oil

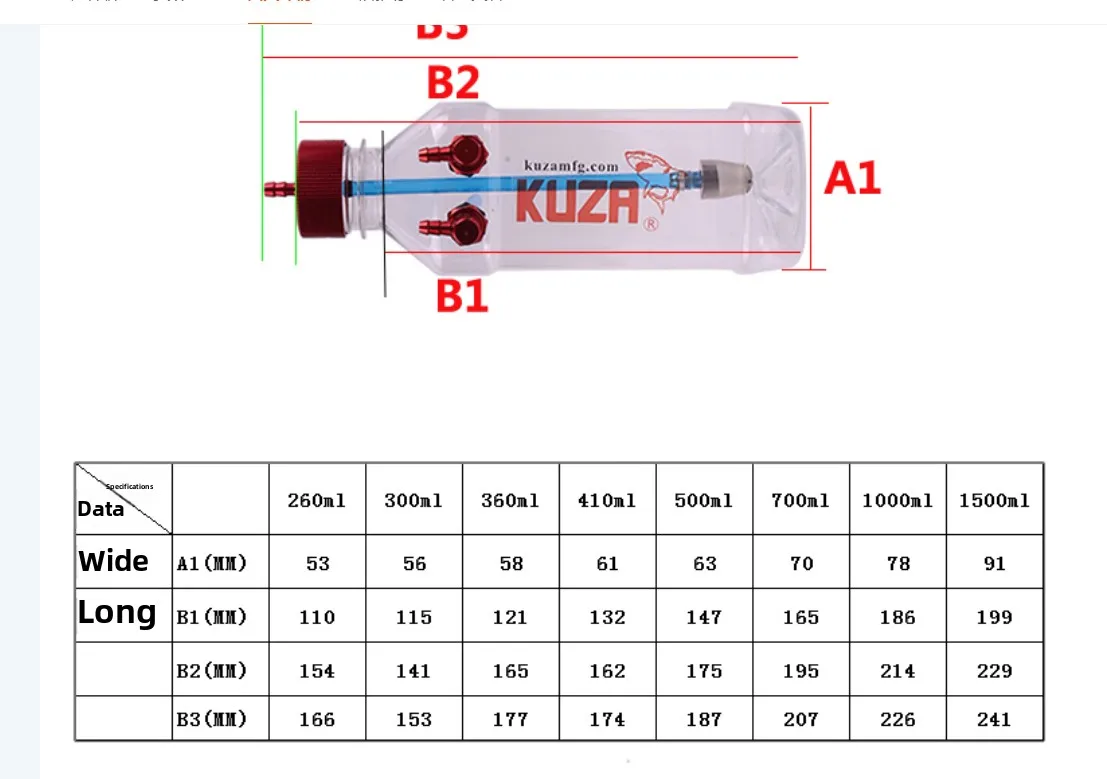

Product specifications:

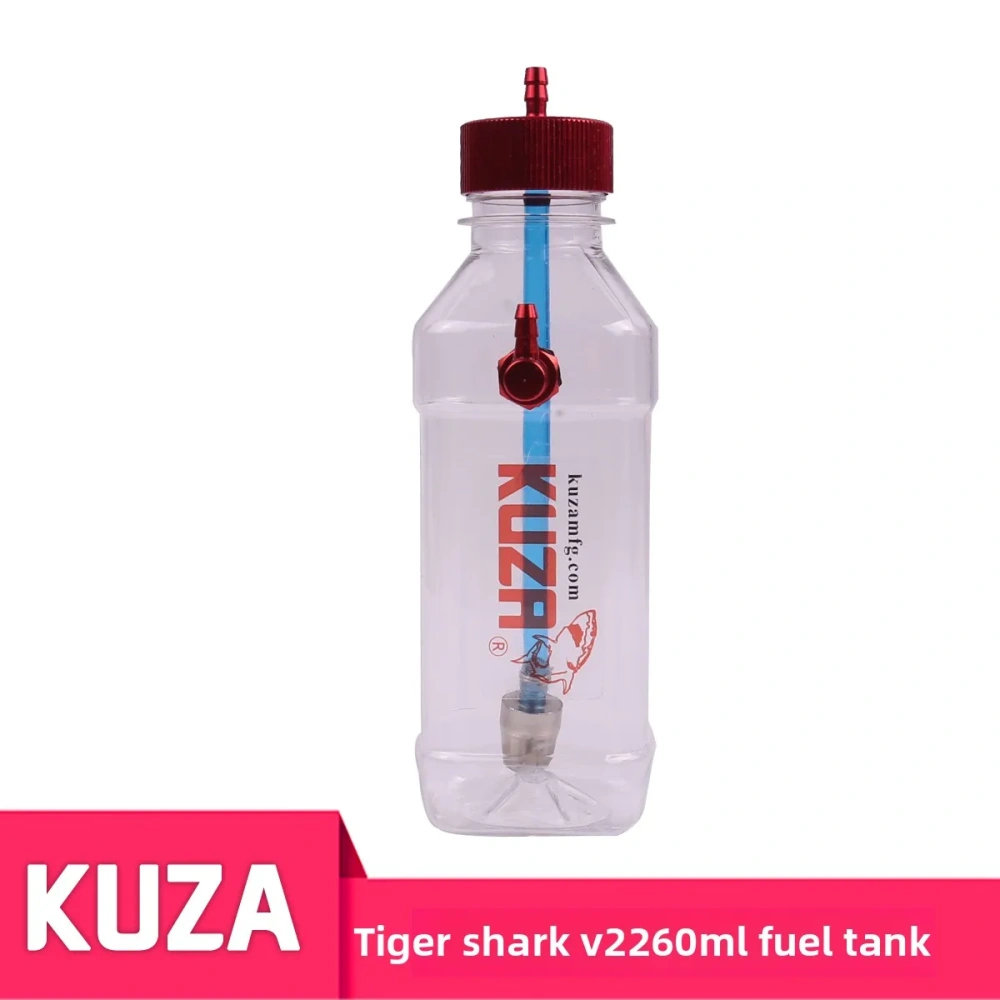

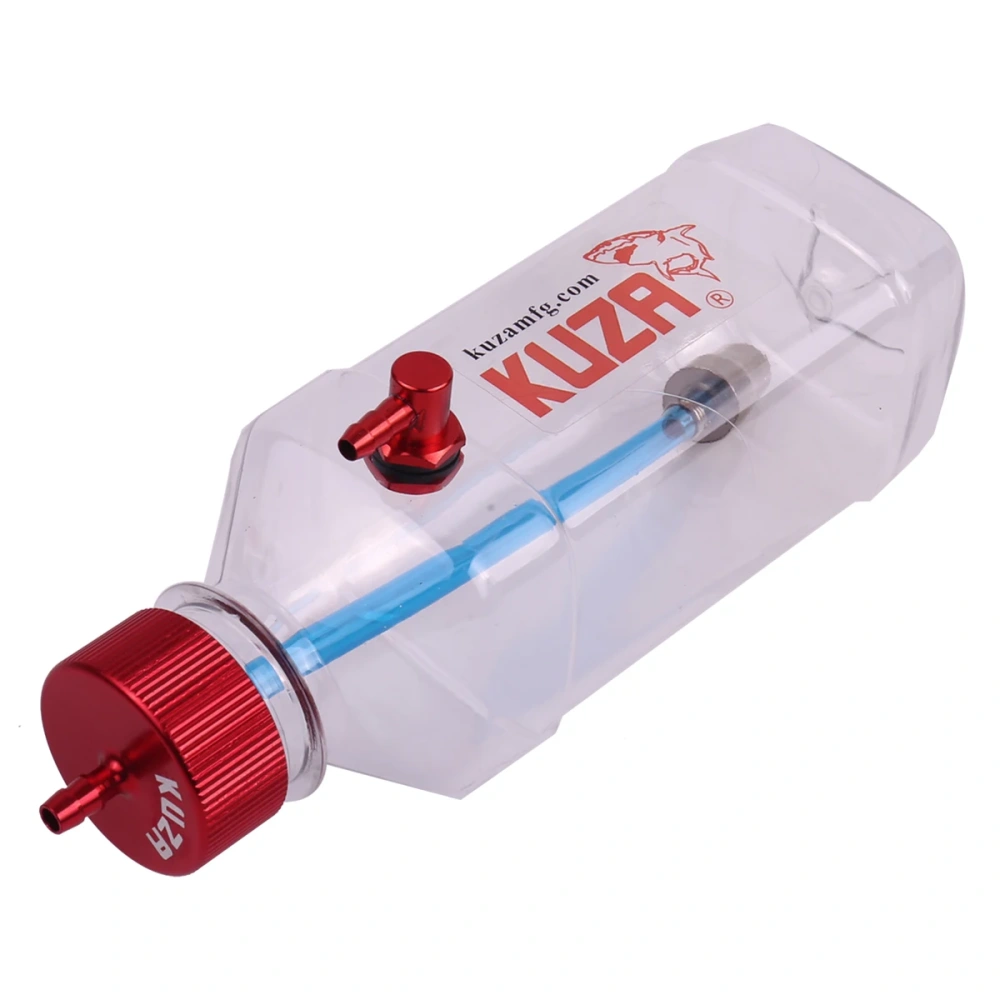

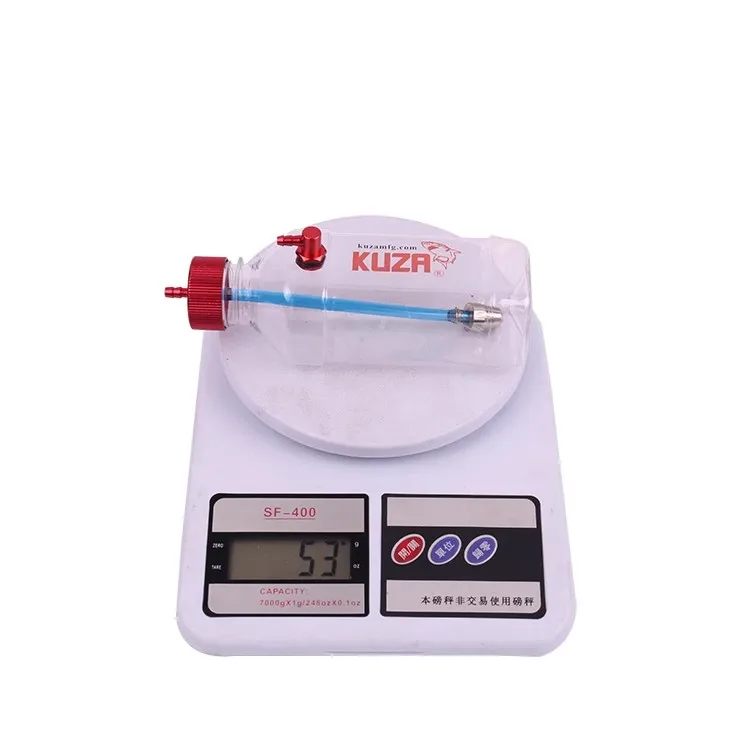

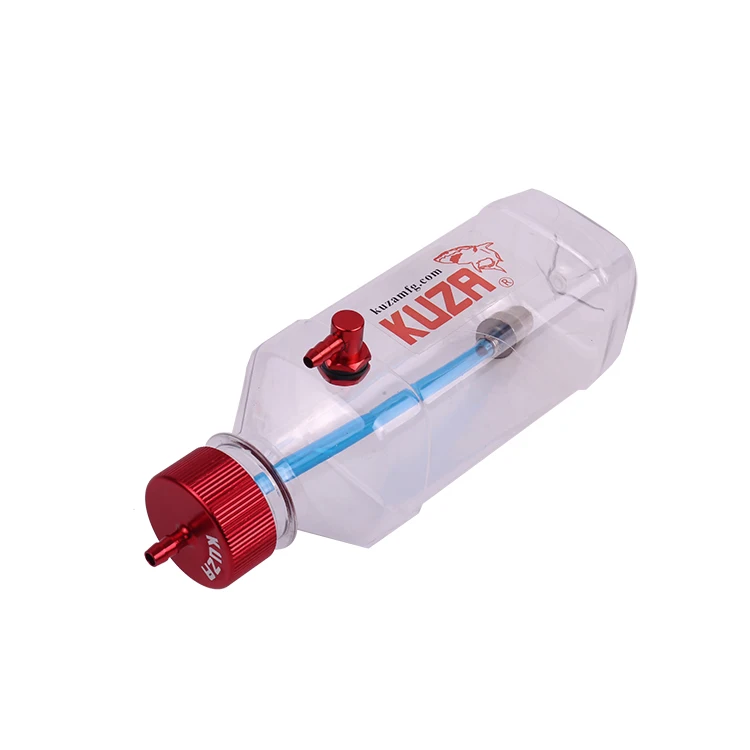

260 ml (suitable for 15-26CC petrol engines, 1 CNC aluminum nozzle) 166 * 154 * 53 mm (body size) net weight 53 g

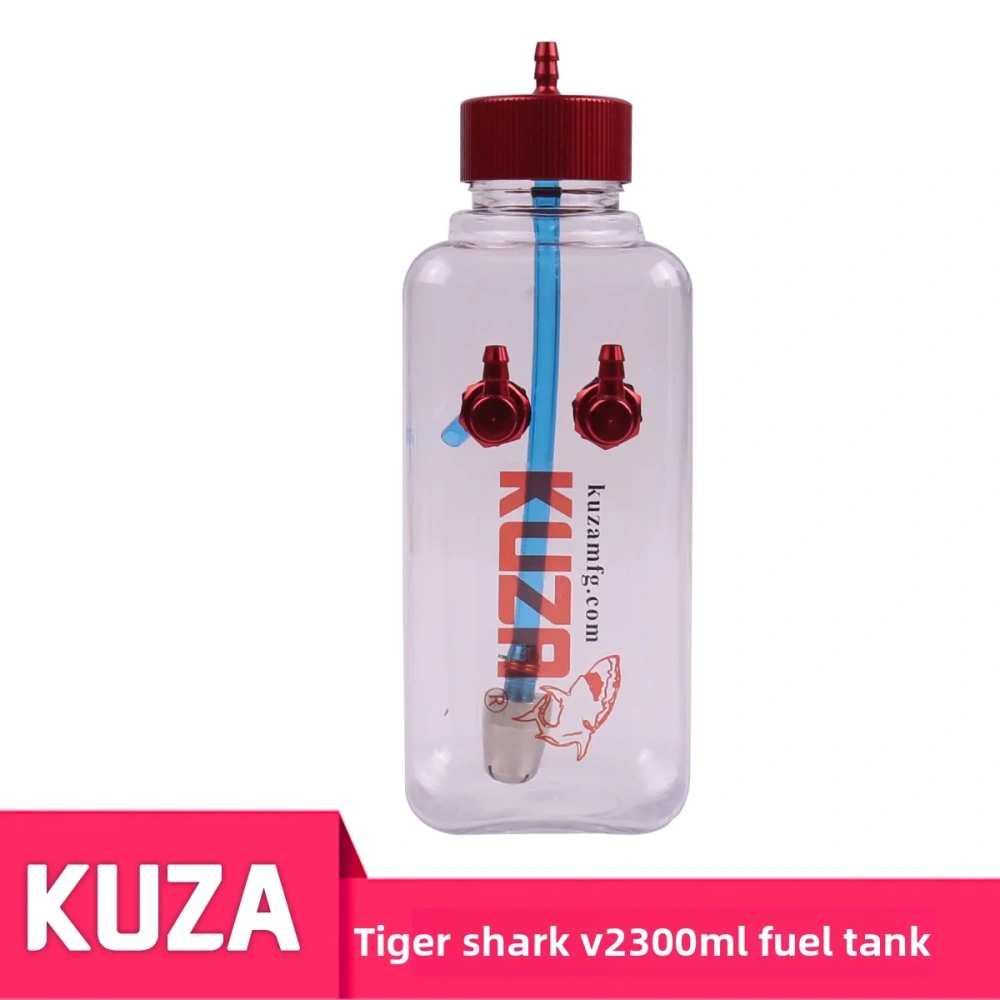

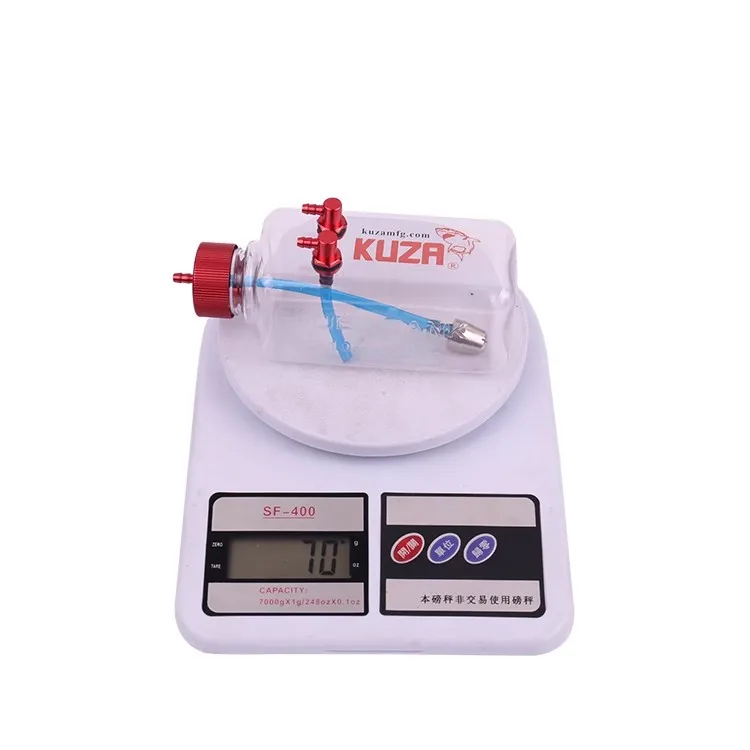

300 ml (suitable for 15-26CC petrol engines, 2 CNC aluminum nozzles) 141 * 153 * 56 mm (body volume) net weight 70 g

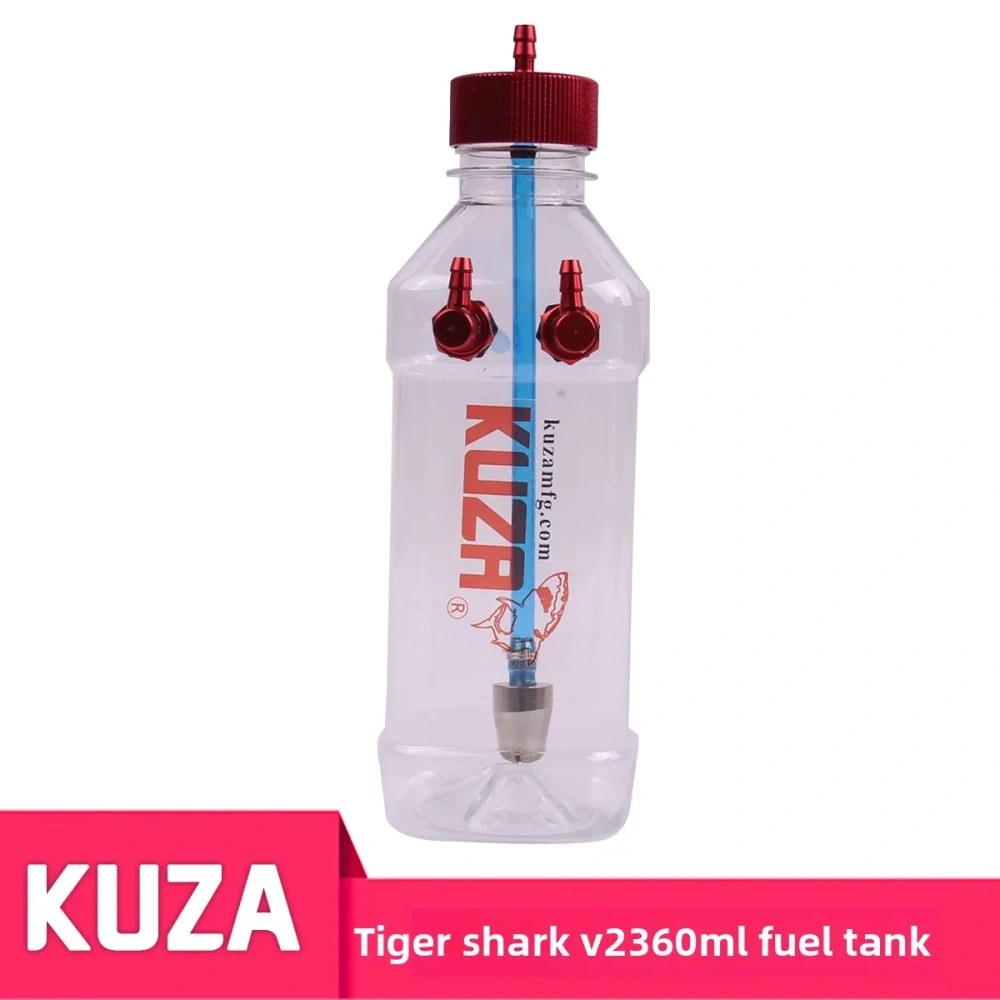

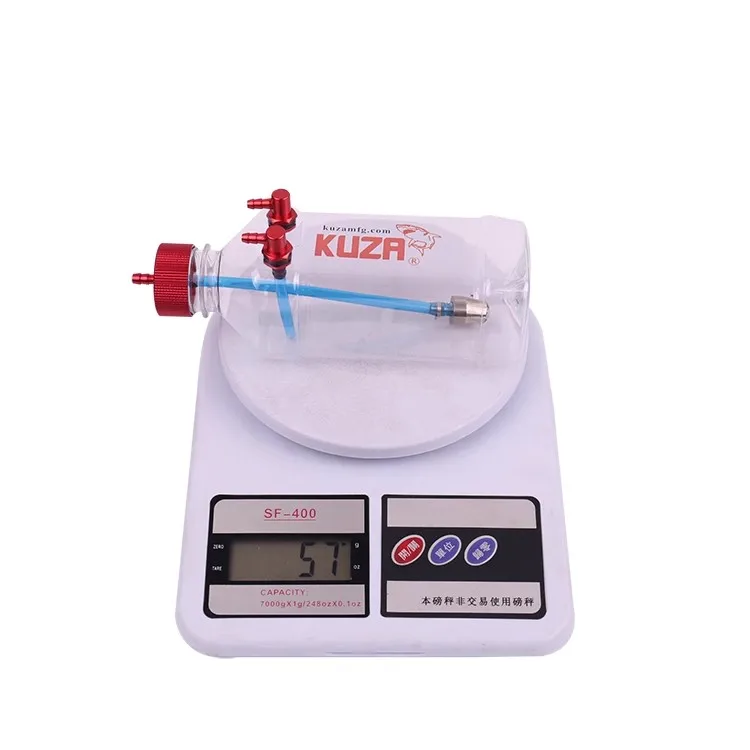

360ml (suitable for 30-40CC petrol engines, 2 CNC aluminum nozzles) 165 * 177 * 58mm (body volume) 59g

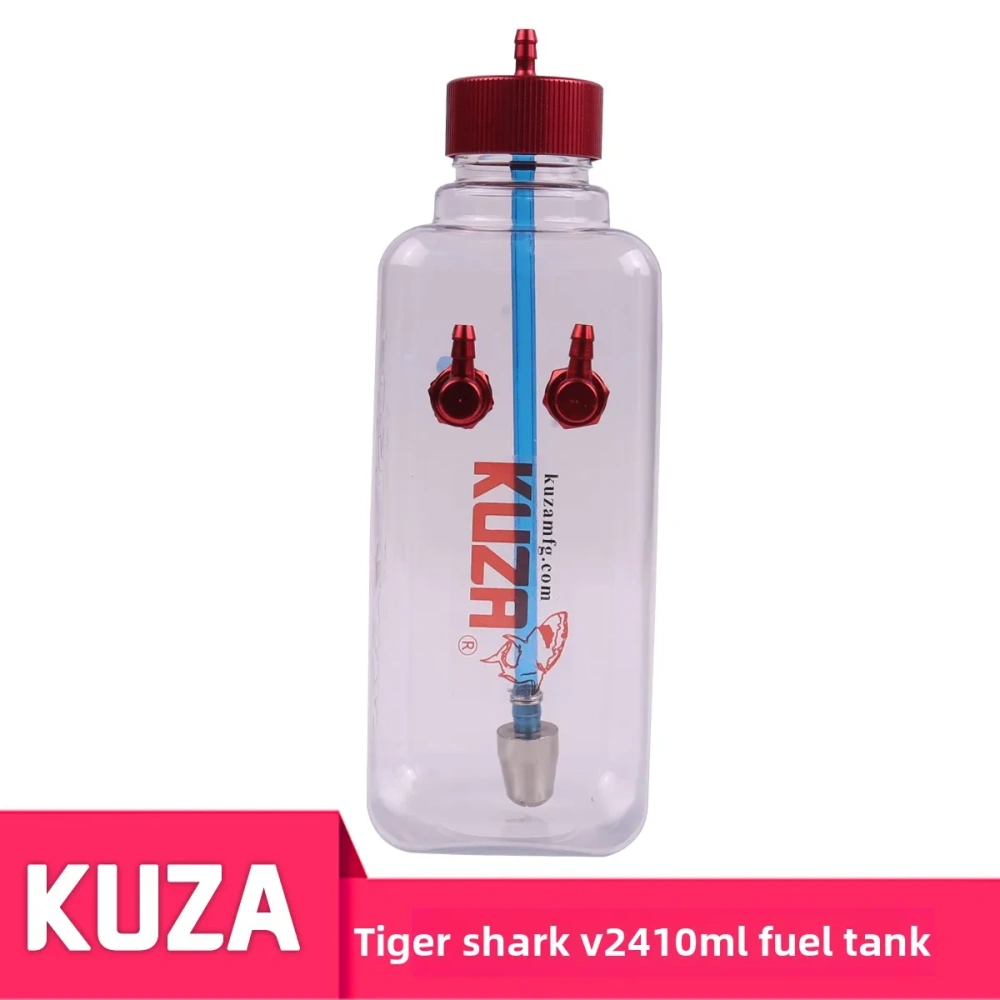

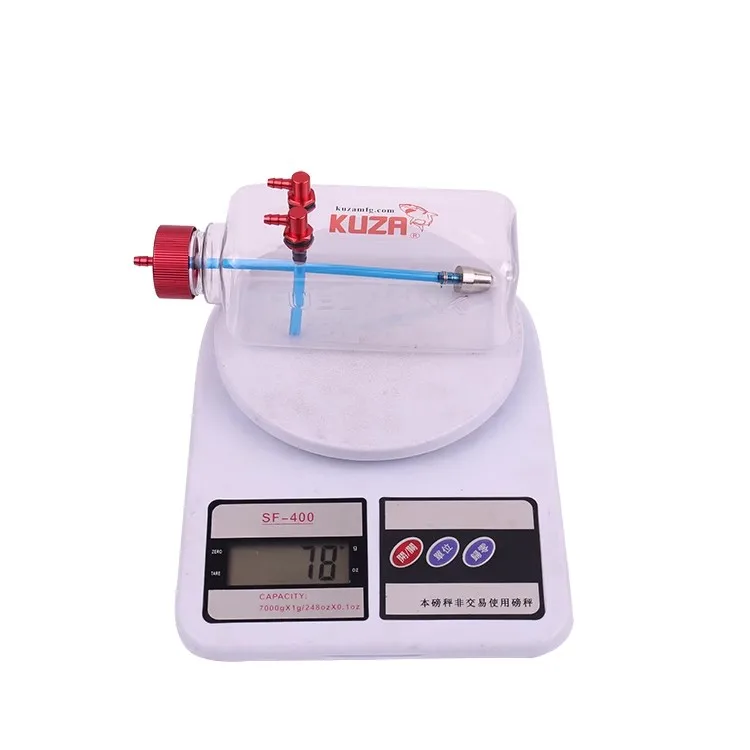

410ml (suitable for 30-40CC petrol engines, 2 CNC aluminum nozzles) 162 * 174 * 61mm (body volume) 78g

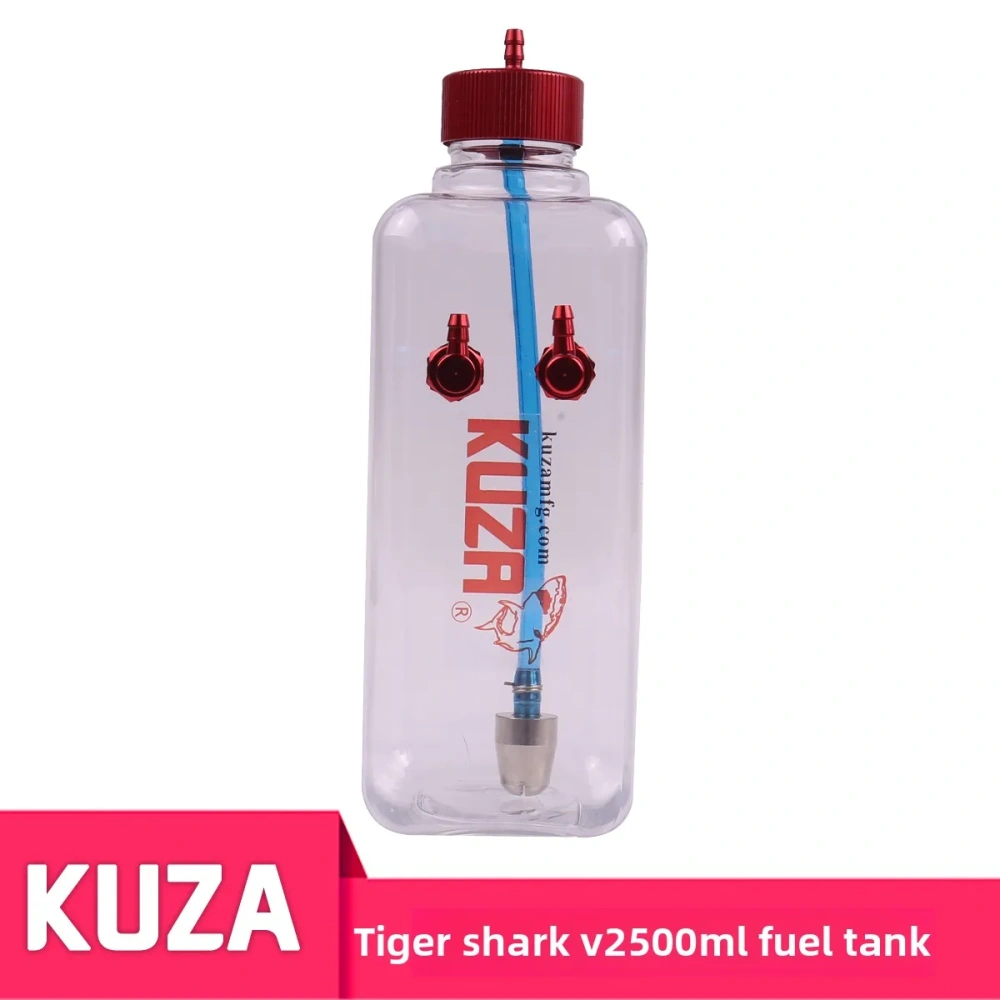

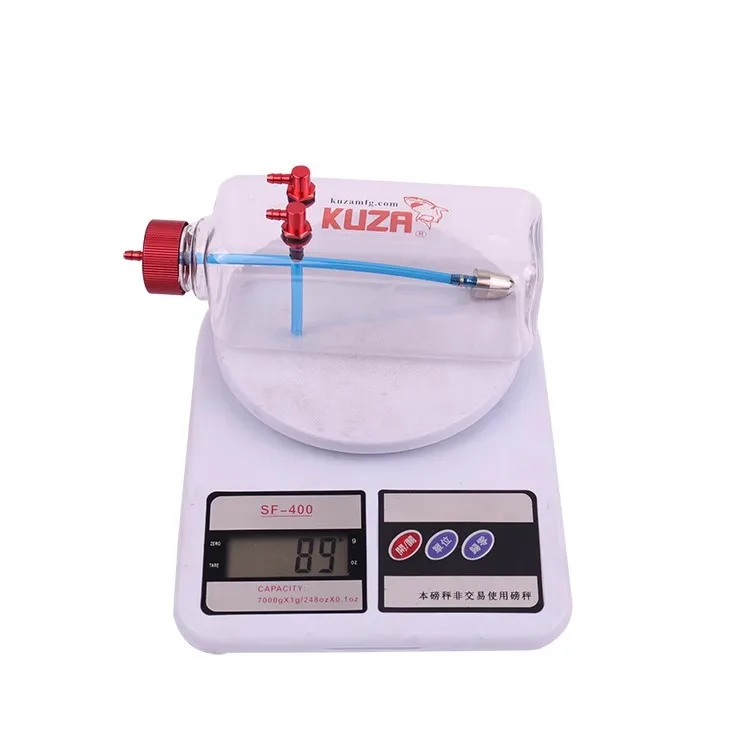

500ml (suitable for 50-60CC petrol engines, 2 CNC aluminum nozzles) 175 * 187 * 175mm (body volume) 89g

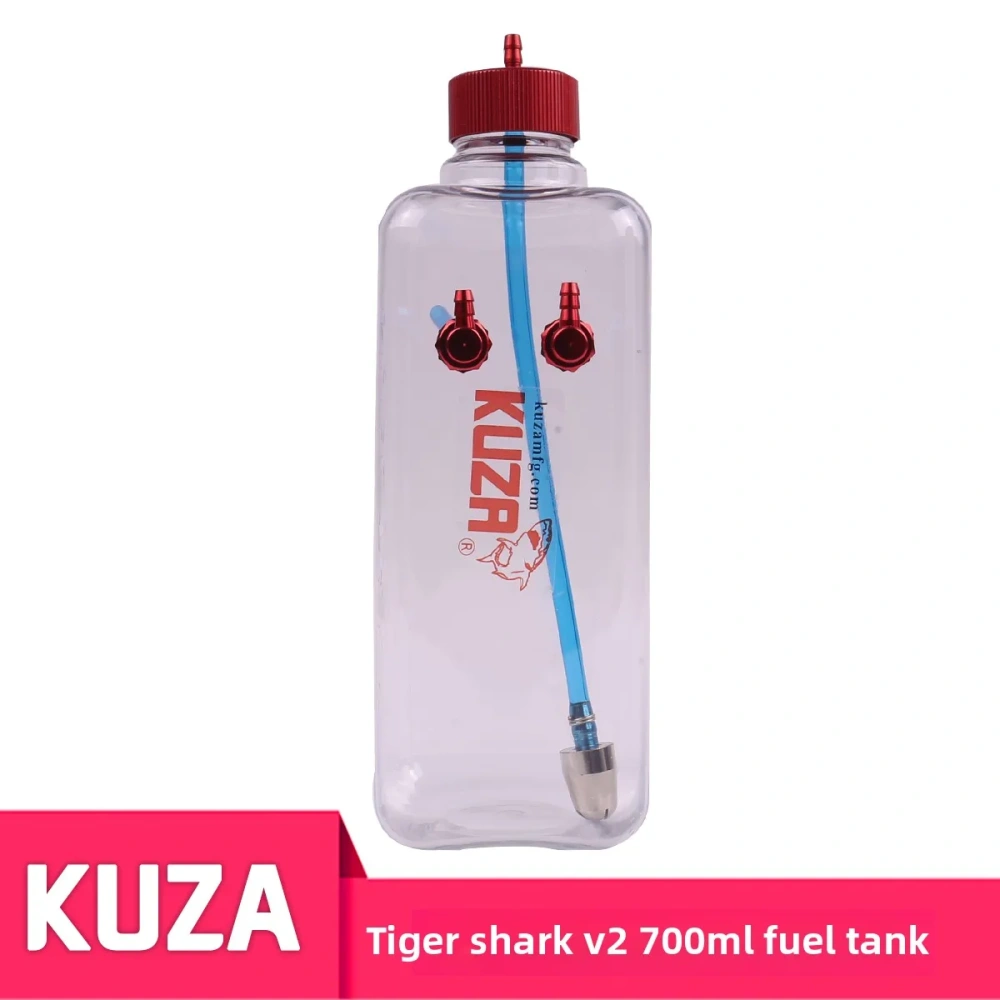

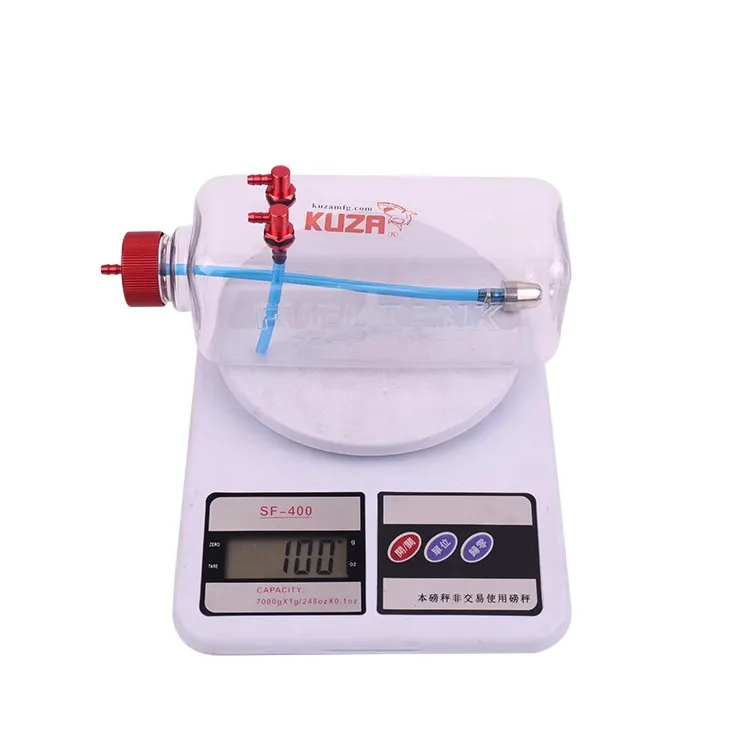

700ml (suitable for 50-70CC petrol engines, 2 CNC aluminum nozzles) 195 * 207 * 70mm (body volume) 100g

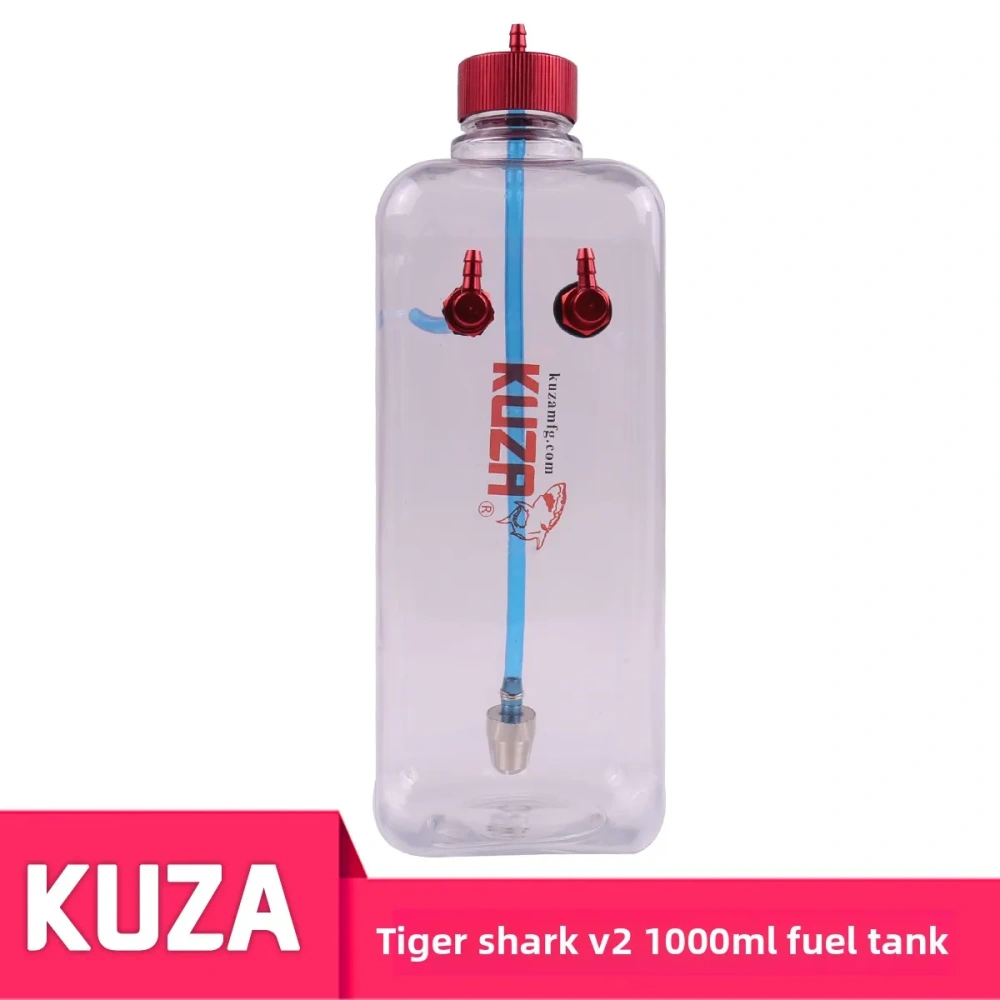

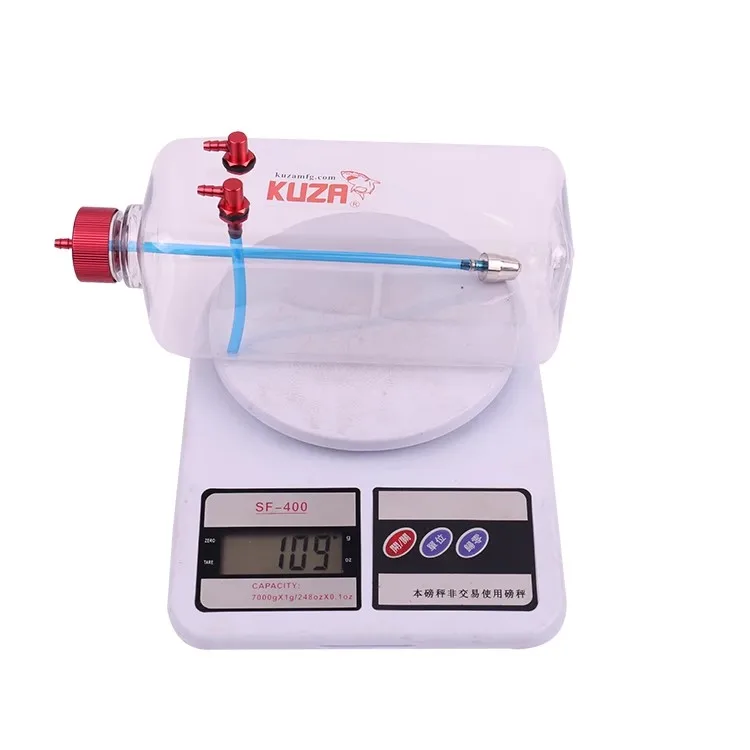

1000 mL (suitable for 85-120CC petrol engines, 2 CNC aluminum nozzles) 214 * 226 * 78 mm (body volume) Net wt. 109 g

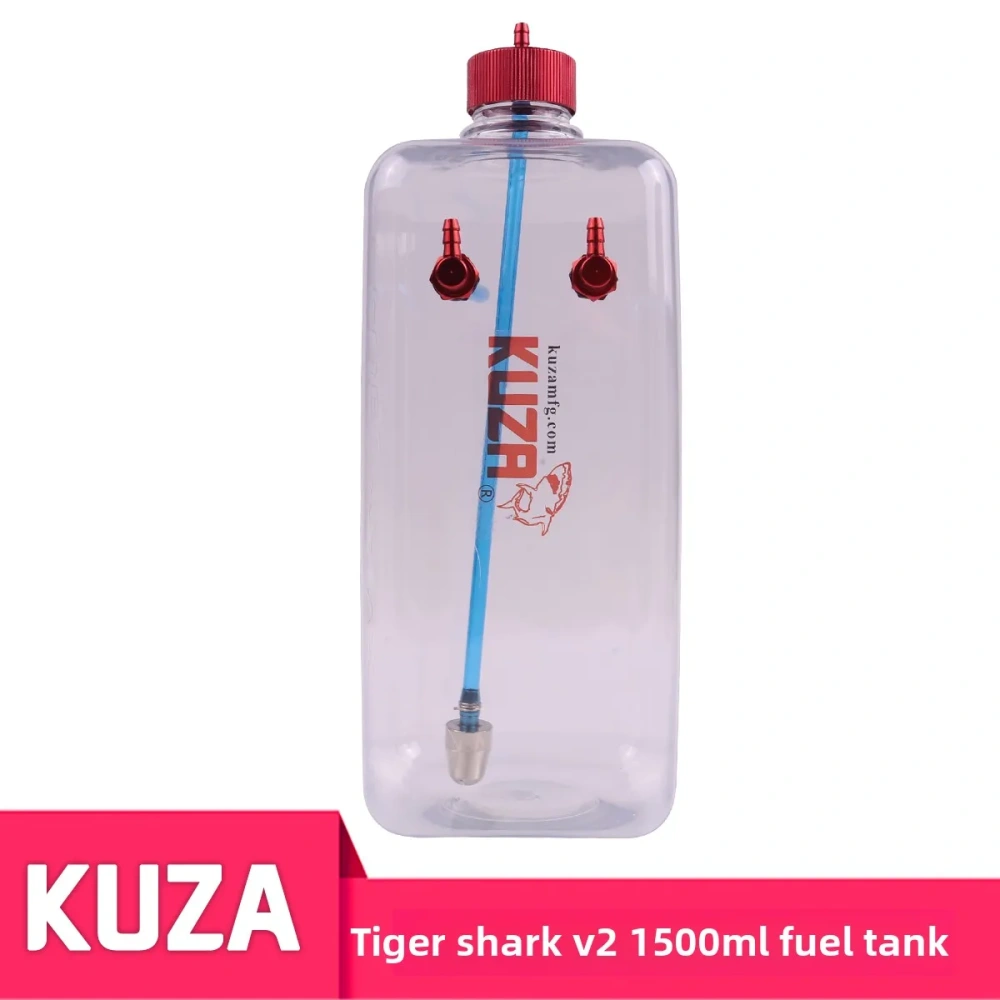

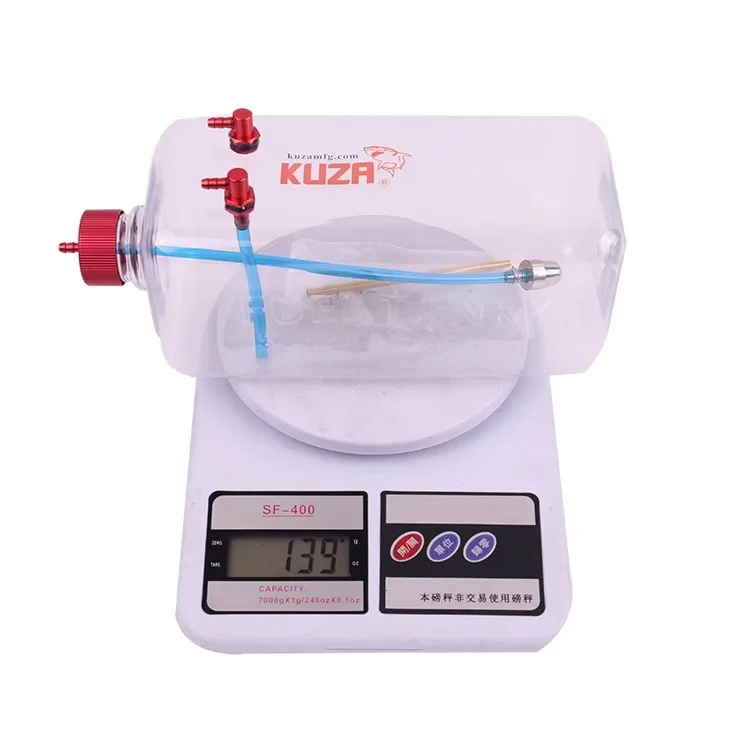

1500ml (suitable for 150-200CC gasoline engines, 2 CNC aluminum nozzles with copper tubing) 229 * 241 * 91mm (body volume) Net wt. 139g

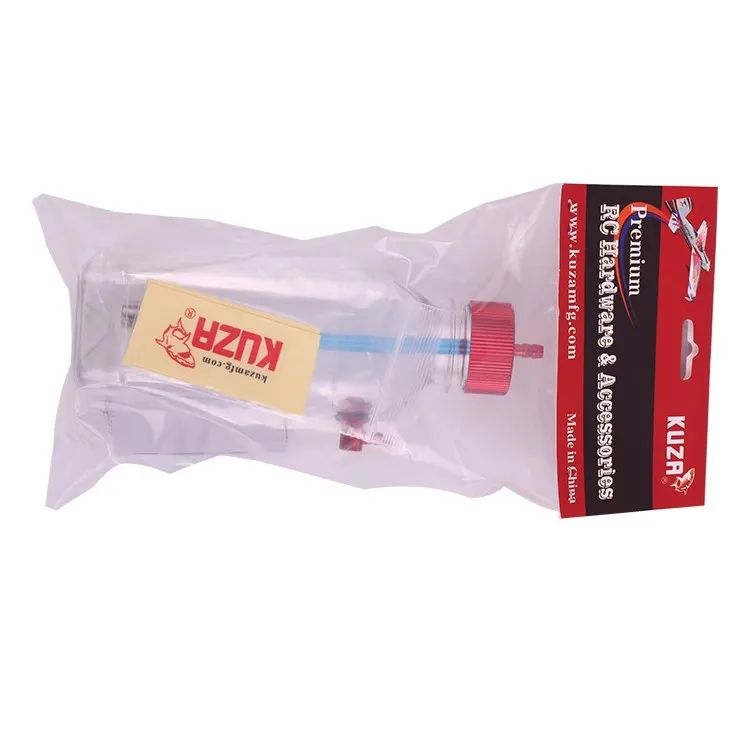

Regular packaging:
