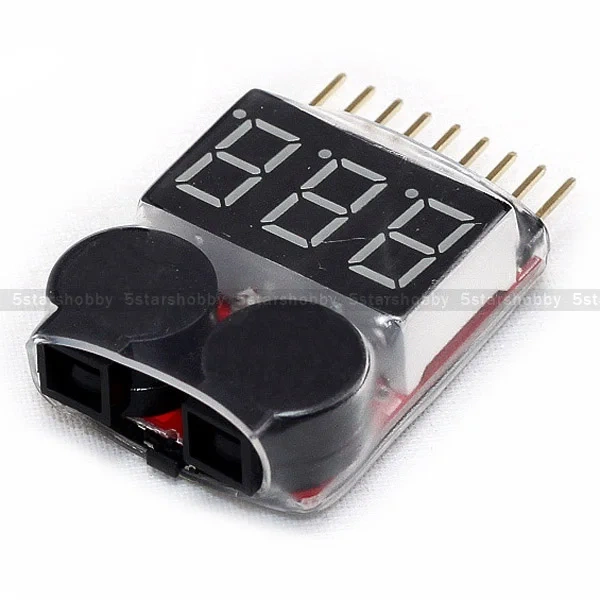

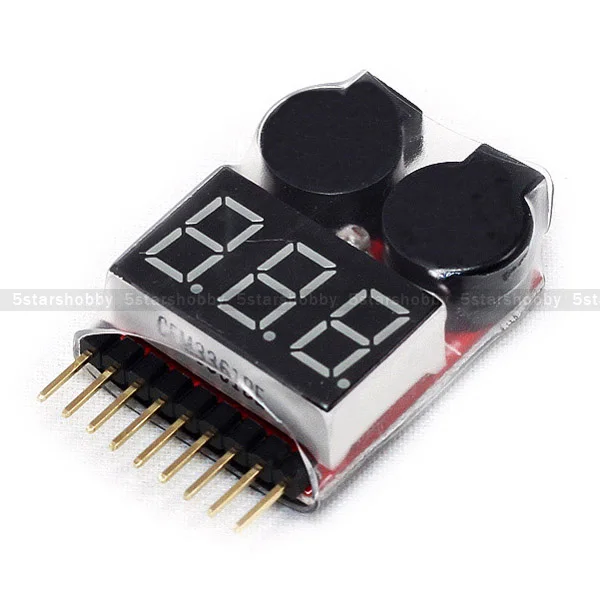

XAERO 1-8S Battery Monitor & Low Voltage Beeper, Dual-Function Battery Tester with Alarm
Product Introduction:
This voltage display is used for testing lithium batteries ranging from 1S to 8S, automatically detecting the voltage of each cell and the total voltage of the lithium battery Support reverse connection protection
It allows you to know the working status of your battery anytime, anywhere, so that the battery will not be damaged due to overdischarge or overcharge.
Whether in flight or idle mode, the power display can be plugged into the battery balance charging connector to check the battery level.
Not having a multimeter is even more essential!
When the voltage is lower than the set value, the buzzer will sound and the red LED light will flash; The set value is 3.3V. Pressing the button can change the voltage set value and automatically save the user's current set value.

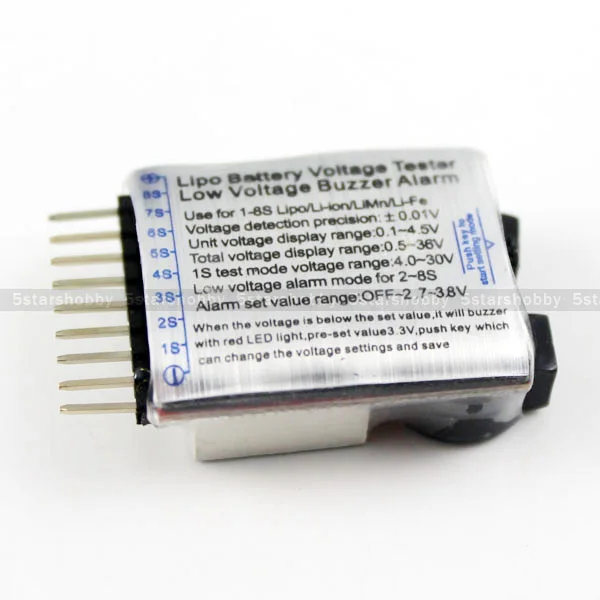

Product Parameters:
1. Used for testing 1S-8S lithium batteries
2. Voltage detection accuracy: ± 0.01V.
3. Group voltage display range: 0.5V~4.5V
4. Total voltage display range: 0.5V~36V
5.1S test mode voltage range: 3.7V~30V
6. Low voltage buzzer alarm mode 2S-8S
7. Alarm voltage setting range: OFF~2.7~3.8V
8. Size: 40mm x 25mm x 11mm Weight: 9g
Instructions:

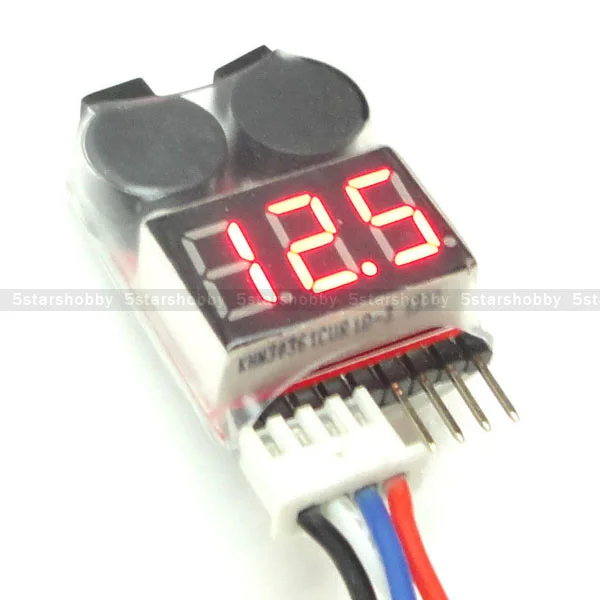

Turn the front of the display up (the digital display side), with the pins facing yourself, and insert the white balanced charging plug of the battery along the leftmost pin of the display. The display will immediately beep twice, and the screen will display a jumping number. If there is no response, simply reverse the balanced charging plug and plug it in. On the other end of the electronic display, there is a small button used to set the alarm voltage of the display.
