XAERO Throttle Controller for RC Jets, Precision Brushless Motor Speed Regulator with LCD Display, 6-12S LiPo Compatible

Input: DC5~16.8V
Output: output voltage=input voltage
Manual adjustment range of pulse width modulation signal: 0.9ms~2.1ms
± 0.01ms

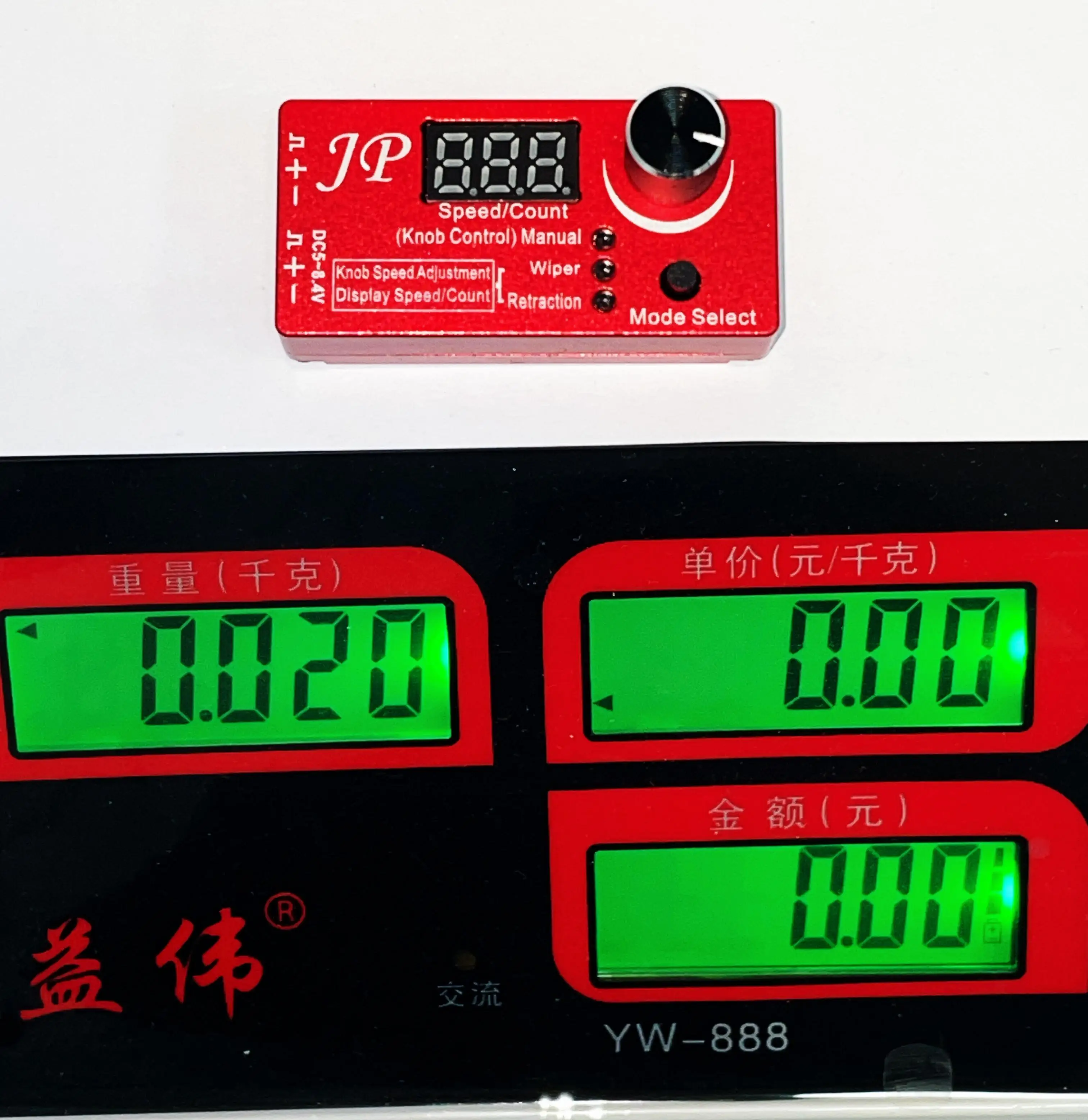

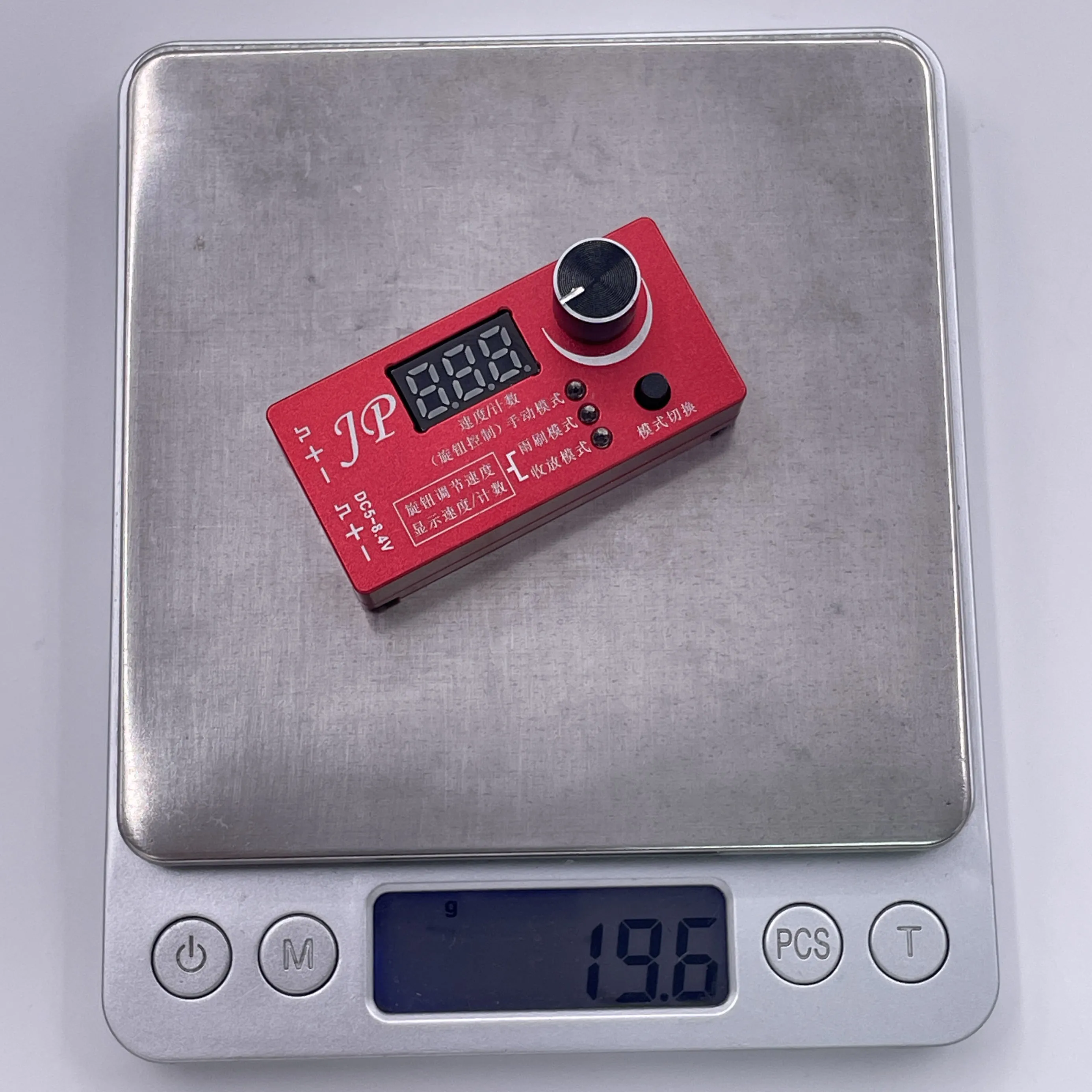

Struggle size: 51x15x15 mm × Weight: 20 g
Pulse width adjustment mode: manual adjustment;
Wipe test+speed+count;
Retract test+speed+count

Manual mode: The desired pulse width parameters can be adjusted by knob and display (1.5 is the rudder neutral point)
Wipe mode: Repeated interval speed (0.2 s~12 s) and counting (counting six digits: 0.0.0+0.0.0; 1234 examples, first page 234+second page 001 displayed) can be set by knob and display
Repeated interval speed (1 s~20 s) and count retraction mode can be set by knob and display: 1 (count six digit: 0.0.0+0.0.0: 1234 examples, display first page 234+second page 001)
